WIDIA™ VariTurn™

Inserts

Product specifications
Product # 4167128
ISO Catalog Number VNMG1604086P
ANSI Catalog Number VNMG3326P
Grade TN30M

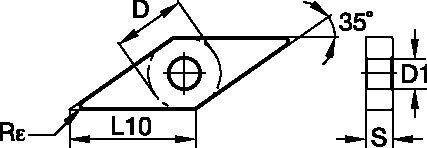

[D] Insert IC Size Metric 9,525
[D] Insert IC Size Fraction 3/8
[L10] Ins Cut Edge Length mm 16,60
[L10] Ins Cut Edge Length In .6538
[S] Insert Thickness Metric 4,760
[S] Insert Thickness Fraction 3/16
[REPSILON] Corner Radius MM 0,800
[REPSILON] Corner Radius Frac 1/32
[D1] Insert Hole Size Metric 3,810
[D1] Insert Hole Size Inch .1500
Need help? Contact our customer service team.
Contact us

VNMG-6P

Filter By:
Product # ISO Catalog Number ANSI Catalog Number Grade [D] Insert IC Size Metric [D] Insert IC Size Fraction [L10] Ins Cut Edge Length mm [L10] Ins Cut Edge Length In [S] Insert Thickness Metric [S] Insert Thickness Fraction [REPSILON] Corner Radius MM [REPSILON] Corner Radius Frac [D1] Insert Hole Size Metric [D1] Insert Hole Size Inch
4167125 VNMG1604086P VNMG3326P TN10P 9,525 3/8 16,60 .6538 4,760 3/16 0,800 1/32 3,810 .1500
4167126 VNMG1604086P VNMG3326P TN20P 9,525 3/8 16,60 .6538 4,760 3/16 0,800 1/32 3,810 .1500
4167128 VNMG1604086P VNMG3326P TN30M 9,525 3/8 16,60 .6538 4,760 3/16 0,800 1/32 3,810 .1500

Product Usage

P
M
K
N
H
S
C
TN10P TN20P TN30M

Grades

  • TN10P
  • TN20P
  • TN30M
