WCE5 • Series W5N1 • Radiused • 5 Flute • Necked • Straight Shank • Metric

Name: WCE5 • Series W5N1 • Radiused • 5 Flute • Necked • Straight Shank • Metric
SKU: 7007620
Rating: 0 (0 reviews)

Versatile 5-Flute Solid Carbide End Mill

Material Number7007620

ISO Catalog IDW5N1M10005RHTANSI Catalog IDW5N1M10005RHT

W5N1 5FL RA N SS MM Solid End Milling - 7007620 - WIDIA

Open expanded view

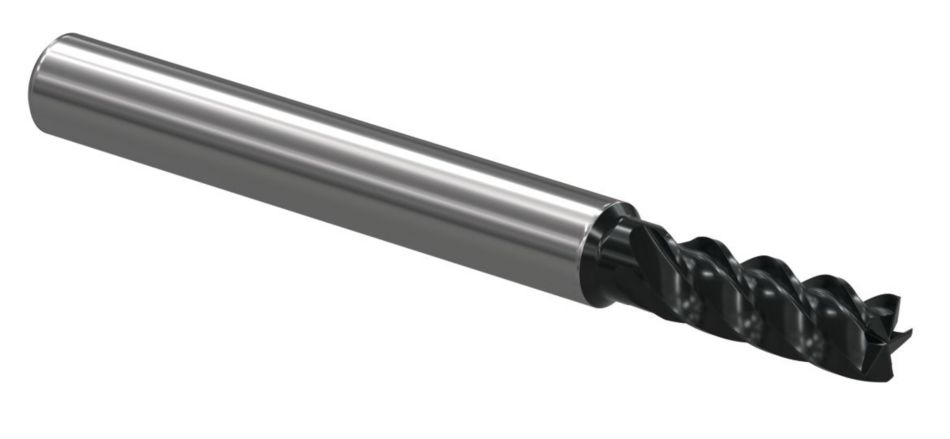

Generic representation

List Price

$69.68/each

Discount

Your Price

/each

In StockThis item is no longer availableLonger Delivery

Material Pricing Group

Contact our sales team to discover all of your pricing options

This item is no longer available

P Steel
M Stainless Steel
K Cast Iron
S High-Temp Alloys
H Hardened Materials
Trochoidal Milling
Helical Milling
Ramping: Blank
Side Milling/Shoulder Milling: Square End

Overview
Application Data
Downloads
Compatible Parts Machine Side
Reviews
Q&A

Metric

Inch

Material Number	7007620
ISO Catalog ID	W5N1M10005RHT
ANSI Catalog ID	W5N1M10005RHT
Grade	WU20PE

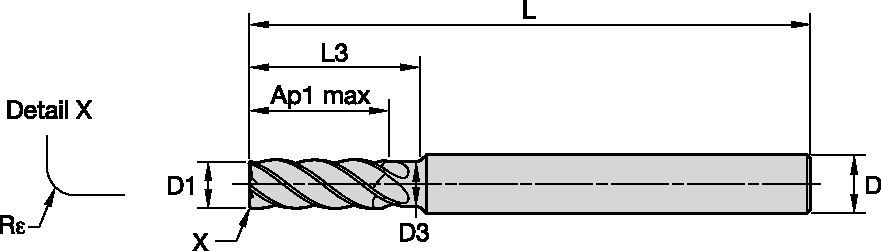

[D1] Effective Cutting Diameter	10 mm
[D1] Effective Cutting Diameter	0.3937 in
[D] Adapter / Shank / Bore Diameter	10 mm
[D] Adapter / Shank / Bore Diameter	0.3937 in
[D3] Neck Diameter	9.4 mm
[D3] Neck Diameter	0.3701 in
[AP1MAX] 1st Maximum Cutting Depth	22 mm
[AP1MAX] 1st Maximum Cutting Depth	0.8661 in
[L] Overall Length	72 mm
[L] Overall Length	2.8346 in
[L3] Usable Length	32 mm
[L3] Usable Length	1.2598 in
[Re] Corner Radius	1.5 mm
[Re] Corner Radius	0.059 in

See all Product Variants

Workpiece Materials

Steel
Stainless Steel
Cast Iron
High-Temp Alloys
Hardened Materials

Uses and application

Trochoidal Milling
Helical Milling
Ramping: Blank
Side Milling/Shoulder Milling: Square End

Features and benefits

WU20PE Grade
38 degree helix to increase performance in a variety of applications
Unequal index to reduce vibration/chatter
Eccentric relief to provide vibration dampening and increase tool life on Steel, Stainless Steel and Cast Iron materials
Core taper to increase tool stability and chip evacuation

Create Solution to calculate Feeds and Speeds

After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.

Application Data


					WU20PE			Recommended feed per tooth (fz = mm/th) for side milling (A). For slotting (B), reduce fz by 20%.
		Side Milling		Slotting	Cutting Speed Vc m/min				D1 Diameter
Material Group		ap	ae	ap	Min	Start	Max	mm	4,0	5,0	6,0	8,0	10,0	12,0	14,0	16,0	18,0	20,0	25,0
P	0	ap1max	0,4 x D	0,3 x D	150	–	200	fz	0,028	0,036	0,044	0,060	0,072	0,083	0,092	0,101	0,108	0,114	0,124
P	1	ap1max	0,4 x D	0,3 x D	150	–	200	fz	0,028	0,036	0,044	0,060	0,072	0,083	0,092	0,101	0,108	0,114	0,124
P	2	ap1max	0,4 x D	0,3 x D	140	–	190	fz	0,028	0,036	0,044	0,060	0,072	0,083	0,092	0,101	0,108	0,114	0,124
P	3	ap1max	0,4 x D	0,3 x D	120	–	160	fz	0,023	0,030	0,036	0,050	0,061	0,070	0,079	0,087	0,095	0,101	0,114
P	4	ap1max	0,4 x D	0,3 x D	90	–	150	fz	0,021	0,027	0,033	0,045	0,054	0,062	0,070	0,077	0,083	0,088	0,098
P	5	ap1max	0,4 x D	0,3 x D	60	–	100	fz	0,019	0,024	0,029	0,040	0,048	0,056	0,063	0,070	0,076	0,081	0,091
P	6	ap1max	0,4 x D	0,3 x D	50	–	75	fz	0,016	0,020	0,025	0,034	0,040	0,047	0,052	0,057	0,061	0,065	0,071
M	1	ap1max	0,4 x D	0,3 x D	90	–	115	fz	0,023	0,030	0,036	0,050	0,061	0,070	0,079	0,087	0,095	0,101	0,114
M	2	ap1max	0,4 x D	0,3 x D	60	–	80	fz	0,019	0,024	0,029	0,040	0,048	0,056	0,063	0,070	0,076	0,081	0,091
M	3	ap1max	0,4 x D	0,3 x D	60	–	70	fz	0,016	0,020	0,025	0,034	0,040	0,047	0,052	0,057	0,061	0,065	0,071
K	1	ap1max	0,4 x D	0,3 x D	120	–	150	fz	0,028	0,036	0,044	0,060	0,072	0,083	0,092	0,101	0,108	0,114	0,124
K	2	ap1max	0,4 x D	0,3 x D	110	–	140	fz	0,023	0,030	0,036	0,050	0,061	0,070	0,079	0,087	0,095	0,101	0,114
K	3	ap1max	0,4 x D	0,3 x D	110	–	130	fz	0,019	0,024	0,029	0,040	0,048	0,056	0,063	0,070	0,076	0,081	0,091
S	1	ap1max	0,3 x D	0,2 x D	50	–	90	fz	0,023	0,030	0,036	0,050	0,061	0,070	0,079	0,087	0,095	0,101	0,114
S	2	ap1max	0,3 x D	0,2 x D	25	–	40	fz	0,013	0,016	0,019	0,026	0,032	0,037	0,042	0,046	0,050	0,054	0,061
S	3	ap1max	0,4 x D	0,3 x D	60	–	80	fz	0,019	0,024	0,029	0,040	0,048	0,056	0,063	0,070	0,076	0,081	0,091
S	4	ap1max	0,4 x D	0,3 x D	50	–	60	fz	0,016	0,021	0,026	0,037	0,045	0,052	0,058	0,064	0,069	0,074	0,084
H	1	ap1max	0,4 x D	0,3 x D	80	–	140	fz	0,021	0,027	0,033	0,045	0,054	0,062	0,070	0,077	0,083	0,088	0,098
H	2	ap1max	0,2 x D	0,3 x D	70	–	120	fz	0,016	0,020	0,025	0,034	0,040	0,047	0,052	0,057	0,061	0,065	0,071


					WU20PE			Recommended feed per tooth (IPT = inch/th) for side milling (A). For slotting (B), reduce IPT by 20%.
		Side Milling		Slotting	Cutting Speed Vc m/min				D1 Diameter
Material Group		ap	ae	ap	Min	Start	Max	frac.	3/16	1/4	5/16	3/8	7/16	1/2	5/8	3/4	1	1 1/4
Material Group		ap	ae	ap	Min	Start	Max	in	0.1875	0.2500	0.3125	0.3750	0.4375	0.5000	0.6250	0.7500	1.0000	1.2500
P	0	ap1max	0.4 x D	0.3 x D	490	–	660	IPT	0.0013	0.0018	0.0023	0.0027	0.0031	0.0034	0.0039	0.0044	0.0049	0.0049
P	1	ap1max	0.4 x D	0.3 x D	490	–	660	IPT	0.0013	0.0018	0.0023	0.0027	0.0031	0.0034	0.0039	0.0044	0.0049	0.0049
P	2	ap1max	0.4 x D	0.3 x D	460	–	620	IPT	0.0013	0.0018	0.0023	0.0027	0.0031	0.0034	0.0039	0.0044	0.0049	0.0049
P	3	ap1max	0.4 x D	0.3 x D	390	–	520	IPT	0.0011	0.0015	0.0020	0.0023	0.0026	0.0029	0.0034	0.0039	0.0045	0.0048
P	4	ap1max	0.4 x D	0.3 x D	300	–	490	IPT	0.0010	0.0014	0.0017	0.0020	0.0023	0.0026	0.0030	0.0034	0.0039	0.0040
P	5	ap1max	0.4 x D	0.3 x D	200	–	330	IPT	0.0009	0.0012	0.0016	0.0018	0.0021	0.0023	0.0027	0.0031	0.0036	0.0039
P	6	ap1max	0.4 x D	0.3 x D	160	–	250	IPT	0.0008	0.0010	0.0013	0.0015	0.0017	0.0019	0.0022	0.0025	0.0028	0.0029
M	1	ap1max	0.4 x D	0.3 x D	300	–	380	IPT	0.0011	0.0015	0.0020	0.0023	0.0026	0.0029	0.0034	0.0039	0.0045	0.0048
M	2	ap1max	0.4 x D	0.3 x D	200	–	260	IPT	0.0009	0.0012	0.0016	0.0018	0.0021	0.0023	0.0027	0.0031	0.0036	0.0039
M	3	ap1max	0.4 x D	0.3 x D	200	–	230	IPT	0.0008	0.0010	0.0013	0.0015	0.0017	0.0019	0.0022	0.0025	0.0028	0.0029
K	1	ap1max	0.4 x D	0.3 x D	390	–	490	IPT	0.0013	0.0018	0.0023	0.0027	0.0031	0.0034	0.0039	0.0044	0.0049	0.0049
K	2	ap1max	0.4 x D	0.3 x D	360	–	460	IPT	0.0011	0.0015	0.0020	0.0023	0.0026	0.0029	0.0034	0.0039	0.0045	0.0048
K	3	ap1max	0.4 x D	0.3 x D	360	–	430	IPT	0.0009	0.0012	0.0016	0.0018	0.0021	0.0023	0.0027	0.0031	0.0036	0.0039
S	1	ap1max	0.3 x D	0.2 x D	160	–	300	IPT	0.0011	0.0015	0.0020	0.0023	0.0026	0.0029	0.0034	0.0039	0.0045	0.0048
S	2	ap1max	0.3 x D	0.2 x D	80	–	130	IPT	0.0006	0.0008	0.0010	0.0012	0.0014	0.0015	0.0018	0.0021	0.0024	0.0026
S	3	ap1max	0.4 x D	0.3 x D	200	–	260	IPT	0.0009	0.0012	0.0016	0.0018	0.0021	0.0023	0.0027	0.0031	0.0036	0.0039
S	4	ap1max	0.4 x D	0.3 x D	160	–	200	IPT	0.0008	0.0011	0.0014	0.0017	0.0019	0.0021	0.0025	0.0028	0.0033	0.0036
H	1	ap1max	0.4 x D	0.3 x D	260	–	460	IPT	0.0010	0.0014	0.0017	0.0020	0.0023	0.0026	0.0030	0.0034	0.0039	0.0040
H	2	ap1max	0.2 x D	0.3 x D	230	–	390	IPT	0.0008	0.0010	0.0013	0.0015	0.0017	0.0019	0.0022	0.0025	0.0028	0.0029
