Face GroovingDownloaded file will be available after import in the {{cadTool}} tool library.
| Material Number | 3653426 |
| ISO Catalog ID | WMTBL2525M316-070-100 |
| ANSI Catalog ID | 251222 |
| Grade | WG |
| Insert Size | 3 |
| [W] Groove Width | 3 mm |
| [W] Groove Width | 0.1181 in |
| [H] Shank Height | 25 mm |
| [H] Shank Height | 0.9842 in |
| [B] Shank Width | 25 mm |
| [B] Shank Width | 0.9842 in |
| [FS] Secondary F Dimension | 23.5 mm |
| [FS] Secondary F Dimension | 0.9252 in |
| [CD] Cutting Depth | 16 mm |
| [CD] Cutting Depth | 0.6299 in |

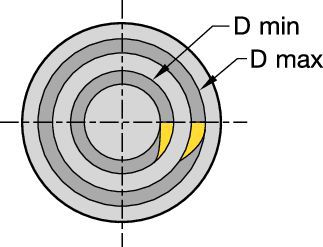

| [DMAX] Maximum Bore Diameter | 100 mm |
| [DMAX] Maximum Bore Diameter | 3.937 in |
| [DM] Minimum Bore Diameter | 70 mm |
| [DM] Minimum Bore Diameter | 2.7559 in |
| [H2] Head Height | 32.11 mm |
| [H2] Head Height | 1.2642 in |
| [L1] Tool Length | 150 mm |
| [L1] Tool Length | 5.9055 in |
| [L2] Head Length | 34.11 mm |
| [L2] Head Length | 1.3429 in |
