    Railway Wheel Reprofiling Inserts • LNUX-T

    ISO/ANSI Carbide Inserts

    Material Number6128294

    ISO Catalog IDLNUX191940TANSI Catalog IDLNUX191940T

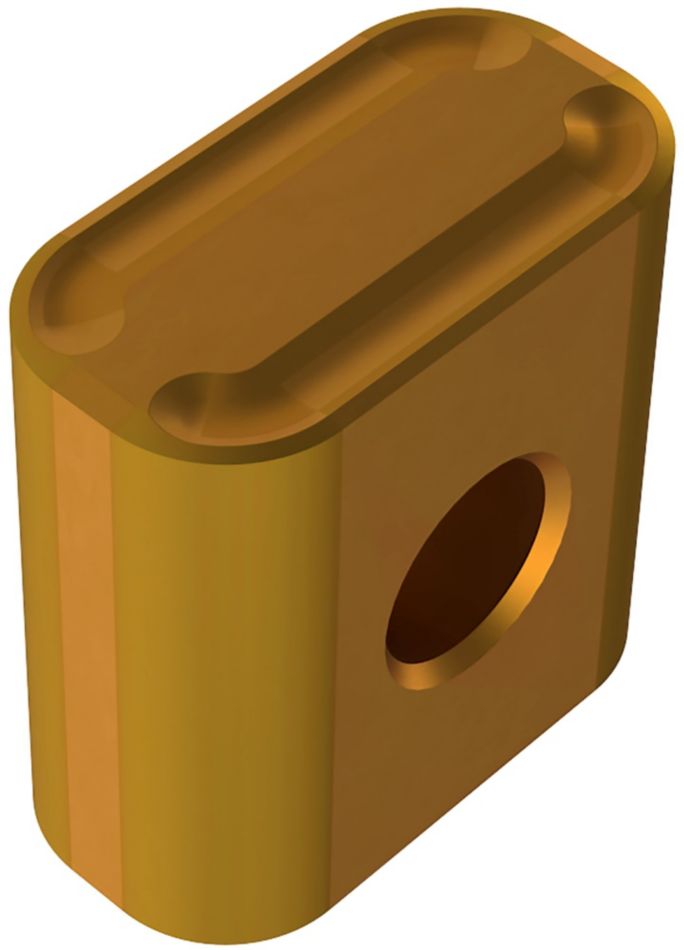

    Victory™ LNUX191940T Insert 6128294 - Widia
    Victory™ LNUX191940T Insert 6128294 - Widia
    Victory™ LNUX191940T Insert 6128294 - Widia
    Open expanded view
    Victory™ LNUX191940T Insert 6128294 - Widia
    Victory™ LNUX191940T Insert 6128294 - Widia
    Generic representation
    List Price
    $46.64/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
      This export format is not yet supported for this category.

      Sending to {{cadTool}} in progress...

      Downloaded file will be available after import in the {{cadTool}} tool library.

      Drawings for 6128294
      Metric
      Inch
      Material Number6128294
      ISO Catalog IDLNUX191940T
      ANSI Catalog IDLNUX191940T
      GradeWP15CT
      [W] Insert Width 10 mm
      [W] Insert Width 0.394 in
      [L10] Insert Cutting Edge Length19.05 mm
      [L10] Insert Cutting Edge Length0.75 in
      [S] Insert Thickness19.05 mm
      [S] Insert Thickness0.75 in
      [Rε] Corner Radius 4 mm
      [Rε] Corner Radius 0.157 in
      [D1] Insert Hole Size 6.35 mm
      [D1] Insert Hole Size 0.25 in
      See all Product Variants

      Grades

      WP15CT

      WP15CT

      Coated carbide. MT-CVD/CVD — TiN-TiCN-Al2O3-ZrCN. Good balance of wear resistance
      and toughness properties. High-productivity machining on smooth to lightly interrupted cuts. For steels.

      Create Solution to calculate Feeds and Speeds

      After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.

      I have read and accepted the Terms & Conditions of use

      CAD Drawings Models

      Can’t find the file type you’re looking for?

      Product data

      SDS

      Safety Data Sheets
