| SAP Material Number | 2441256 |
| ISO Catalog Number | 450227-000500 |
| ANSI Catalog Number | 450227-000500 |
| Grade | K10F-DCFD |

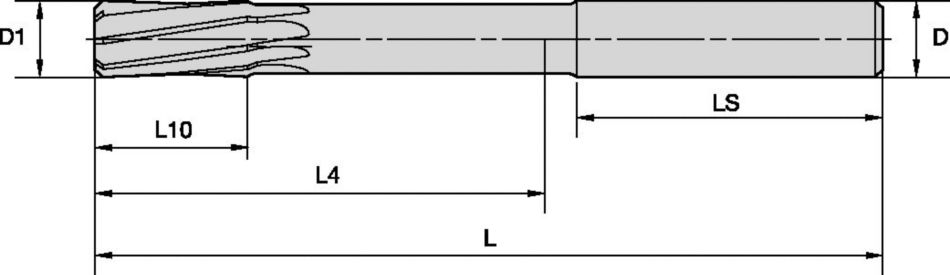

| [D1] Reamer Diameter Minimum | 5.0000 mm |
| [D1] Reamer Diameter Minimum | .1969 in |
| [D] Adapter / Shank / Bore Diameter | 6.0 mm |
| [D] Adapter / Shank / Bore Diameter | .2362 in |
| [L] Overall Length | 74.0000 mm |
| [L] Overall Length | 2.913 in |
| [L4] Maximum Reaming Depth | 32.0000 mm |
| [L4] Maximum Reaming Depth | 1.259 in |
| [L10] Cutting Edge Length | 12.0000 mm |
| [L10] Cutting Edge Length | .4724 in |
| [LS] Shank Length | 36.0 mm |
| [LS] Shank Length | 1.417 in |
| [Z] Number of Flutes | 4 |
Reaming: Through & Cross Holes
Flood Coolant: Reaming
Composition: With a PVD TiAlN coating and a fine-grain carbide substrate, this grade offers excellent wear resistance paired with excellent toughness for medium-speed fine-finishing applications.
Application: First choice for precision reaming of steels, stainless steel, and cast irons.
