| SAP Material Number | 6401907 |
| ISO Catalog Number | TACU016KM40SA60908134 |
| ANSI Catalog Number | TACU016KM40SA60908134 |
| MAR_ASTERISK | * |

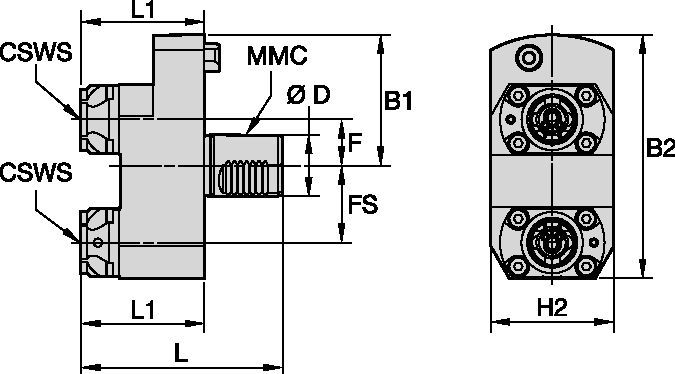

| [CSWS] System Size Workpiece Side | KM40 |
| Machine Mount Code | 016 |
| [B1] Front Clearance | 85.0000 mm |
| [B1] Front Clearance | 3.346 in |
| [B2] Overall Width | 158.0000 mm |
| [B2] Overall Width | 6.220 in |
| [D] Adapter / Shank / Bore Diameter | 40.0 mm |
| [D] Adapter / Shank / Bore Diameter | 1.574 in |
| [F] F Dimension | 30.0000 mm |
| [F] F Dimension | 1.181 in |
| [FS] Secondary F Dimension | 50.0000 mm |
| [FS] Secondary F Dimension | 1.969 in |
| [H2] Overall Height | 80.0000 mm |
| [H2] Overall Height | 3.150 in |
| [L] Overall Length | 131.0000 mm |
| [L] Overall Length | 5.158 in |
| [L1] Gage Length | 80.0000 mm |
| [L1] Gage Length | 3.150 in |
| Coolant Pressure Bar | 100.0 |
| Coolant Pressure PSI | 1500.0 |
| Coolant Delivery | I |
| Weight Kilograms | 5.68 |
| Torque Catalog Newton Meters | 12-16 |
| Torque Catalog Foot Pounds | 9-12 |
