| SAP Material Number | 6334587 |
| ISO Catalog Number | PSC5045TAR2020M |
| ANSI Catalog Number | PSC5045TAR2020M |

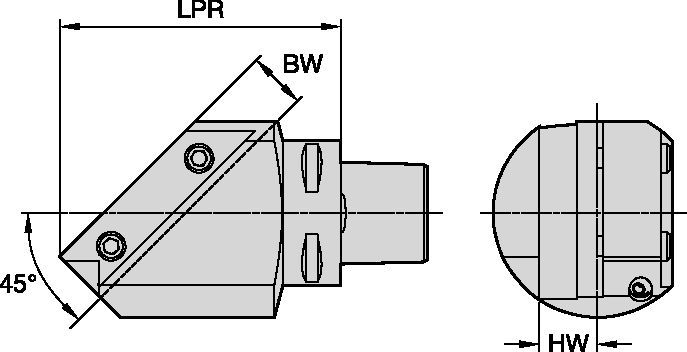

| [BW] Shank Width | 20.0000 mm |
| [BW] Shank Width | .7874 in |
| [F] F Dimension | -23.7240 mm |
| [F] F Dimension | -0.934 in |
| [HW] Shank Height | 20.0000 mm |
| [HW] Shank Height | .7874 in |
| [LPR] Protruding Length | 98.0000 mm |
| [LPR] Protruding Length | 3.858 in |
| Weight Kilograms | 1.75 |
Manufacturer’s Specs: ISO 26623
Shank - PSC
Through Coolant: Axial: DrillingНомер по каталогу ISO
