| SAP Material Number | 3577951 |
| ISO Catalog Number | BDMT170408ERMS |
| ANSI Catalog Number | BDMT170408ERMS |
| Grade | TN6430 |
| Cutting Edges per Insert | 2 |

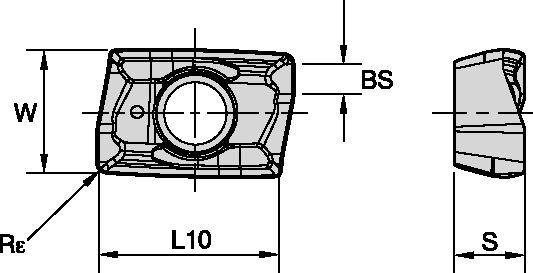

| [L10] Insert Cutting Edge Length | 17.0000 mm |
| [L10] Insert Cutting Edge Length | .6690 in |
| [W] Insert Width | 9.6000 mm |
| [W] Insert Width | .3780 in |
| [S] Insert Thickness | 4.9020 mm |
| [S] Insert Thickness | .1930 in |
| [BS] Corner Facet Length | 1.8800 mm |
| [BS] Corner Facet Length | .0740 in |
| [Rε] Corner Radius | 0.8000 mm |
| [Rε] Corner Radius | .0312 in |
| Average Chip Thickness [HM] | 0.0800 mm |
| Average Chip Thickness [HM] | .0031 in |
