| SAP Material Number | 2823595 |
| ISO Catalog Number | TPGT110204HP |
| ANSI Catalog Number | TPGT2151HP |
| Grade | CM1 |

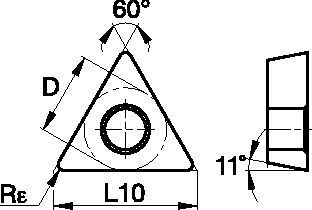

| [D] Insert IC Size | 6.3500 mm |
| [D] Insert IC Size | .2500 in |
| [L10] Insert Cutting Edge Length | 11.0000 mm |
| [L10] Insert Cutting Edge Length | .4331 in |
| [S] Insert Thickness | 2.3810 mm |
| [S] Insert Thickness | .0938 in |
| [Rε] Corner Radius | 0.4000 mm |
| [Rε] Corner Radius | .0156 in |
| [D1] Insert Hole Size | 2.9000 mm |
| [D1] Insert Hole Size | .1140 in |
Uncoated carbide. A very tough, ultra-fine grain unalloyed substrate. For general-purpose machining of most steels, stainless steels, high-temperature alloys, titanium, irons, and non-ferrous materials. Performs best at low speeds and will handle interruptions and high feed rates. Use when C2, C3, or C25 fail due to chipping or breaking.
