| SAP Material Number | 2828499 |
| ISO Catalog Number | TDHH07S104R |
| ANSI Catalog Number | TDHH13081R |
| Grade | CG5 |

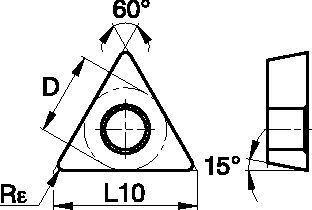

| [D] Insert IC Size | 4.0640 mm |
| [D] Insert IC Size | .1600 in |
| [L10] Insert Cutting Edge Length | 7.0400 mm |
| [L10] Insert Cutting Edge Length | .2770 in |
| [S] Insert Thickness | 1.1910 mm |
| [S] Insert Thickness | .0469 in |
| [Rε] Corner Radius | 0.3800 mm |
| [Rε] Corner Radius | .0150 in |
| [D1] Insert Hole Size | 2.4100 mm |
| [D1] Insert Hole Size | .0950 in |
| [Leff] Insert Effective Cut Length | 4.3600 mm |
| Insert Effect Cut Length [Leff] | .1720 in |
A PVD-TiN-coated grade. Straight 9.5% Co substrate. Submicron grain. For general-purpose machining of most steels, stainless steels, high-temperature alloys, titanium, irons, and non-ferrous materials. Performs best at low speeds and will handle interruptions and high feed rates.
