CLAN/V • Осевой адаптер VDI

зажимные блоки • Адаптеры VDI

Метрическая система
Дюймовая система
SAP Material Number 6344524
ISO Catalog Number PSC50CLAVVDI5080
ANSI Catalog Number PSC50CLAVVDI5080

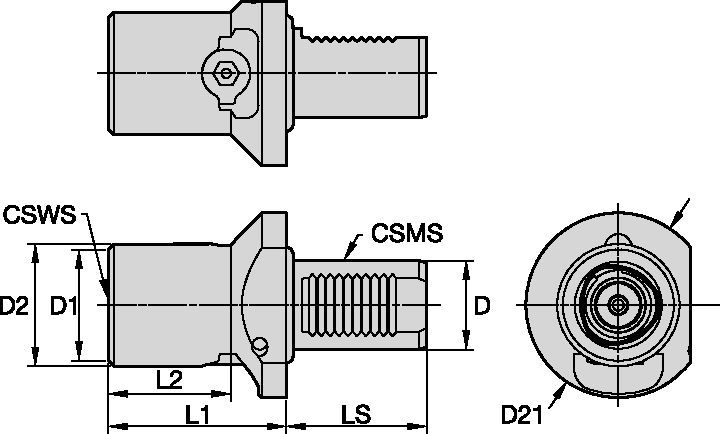

[CSMS] System Size Machine Side VDI50
[CSWS] System Size Workpiece Side PSC50
[D] Adapter / Shank / Bore Diameter 50 mm
[D] Adapter / Shank / Bore Diameter 1.968 in
[D2] Body Diameter 1 Workpiece Side 55 mm
[D2] Body Diameter 1 Workpiece Side 2.165 in
[D1] Adapter / Shank / Bore Diameter 50 mm
[D1] Adapter / Shank / Bore Diameter 1.968 in
[D21] Body Diameter 2 Workpiece Side 98 mm
[D21] Body Diameter 2 Workpiece Side 3.858 in
[L1] Gage Length 80 mm
[L1] Gage Length 3.149 in
[L2] Usable Length 55 mm
[L2] Usable Length 2.165 in
[LS] Shank Length 78 mm
[LS] Shank Length 3.07 in
Actuation Screw ID Drive Size 10 mm
Weight Kilograms 2.13
Посмотреть все варианты продукции

Использование и область применения

  • Manufacturer’s Specs: ISO 26623Manufacturer’s Specs: ISO 26623
  • Shank - PSCShank - PSC
  • VDI ShankVDI Shank
  • Coolant: Through Coolant 80 bar MaximumCoolant: Through Coolant 80 bar Maximum
  • Coolant: Through Coolant 1200 psi MaximumCoolant: Through Coolant 1200 psi Maximum
