GPHT

Метрическая система
Дюймовая система
SAP Material Number 2827548
ISO Catalog Number GPHT050104
ANSI Catalog Number GPHT1211
Grade CG5

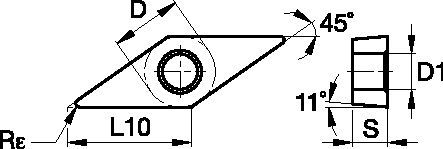

[D] Insert IC Size 4.076 mm
[D] Insert IC Size .1605 in
[L10] Insert Cutting Edge Length 5.76 mm
[L10] Insert Cutting Edge Length .227 in
[S] Insert Thickness 1.57 mm
[S] Insert Thickness .062 in
[Rε] Corner Radius 0.38 mm
[Rε] Corner Radius .015 in
[D1] Insert Hole Size 2.13 mm
[D1] Insert Hole Size .084 in
Посмотреть все варианты продукции

Обрабатываемый материал

P Steel
M Stainless Steel
K Cast Iron
N Non-Ferrous
