Вход в систему| SAP Material Number | 4138532 |
| ISO Catalog Number | GTM215019 |
| ANSI Catalog Number | GTM215019 |
| Grade | WU12PV |

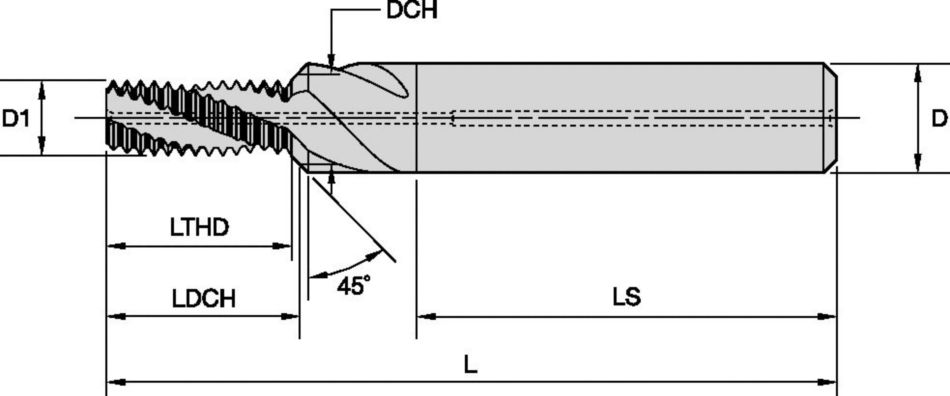

| [TDZ] Thread Diameter Size | 3/8-16 |
| [D1] Effective Cutting Diameter | 7.6500 mm |
| [D1] Effective Cutting Diameter | .3012 in |
| [DCH] Chamfer Diameter | 9.8300 mm |
| [DCH] Chamfer Diameter | .3870 in |
| [LTHD] Thread Length | 19.8900 mm |
| [LTHD] Thread Length | .7831 in |
| [LDCH] Chamfer Length-Tool Front | 20.8500 mm |
| [LDCH] Chamfer Length-Tool Front | .8209 in |
| [L] Overall Length | 80.0000 mm |
| [L] Overall Length | 3.149 in |
| [LS] Shank Length | 45.0 mm |
| [LS] Shank Length | 1.771 in |
| [D] Adapter / Shank / Bore Diameter | 12.0 mm |
| [D] Adapter / Shank / Bore Diameter | .4724 in |
| Number of Effective Cutting Edges on Face | 3 |
Counter Sinking/ Stroke Chamfering
Threading: Through Hole
Threading: Blind Hole
HM
Drilling Depth: 2x

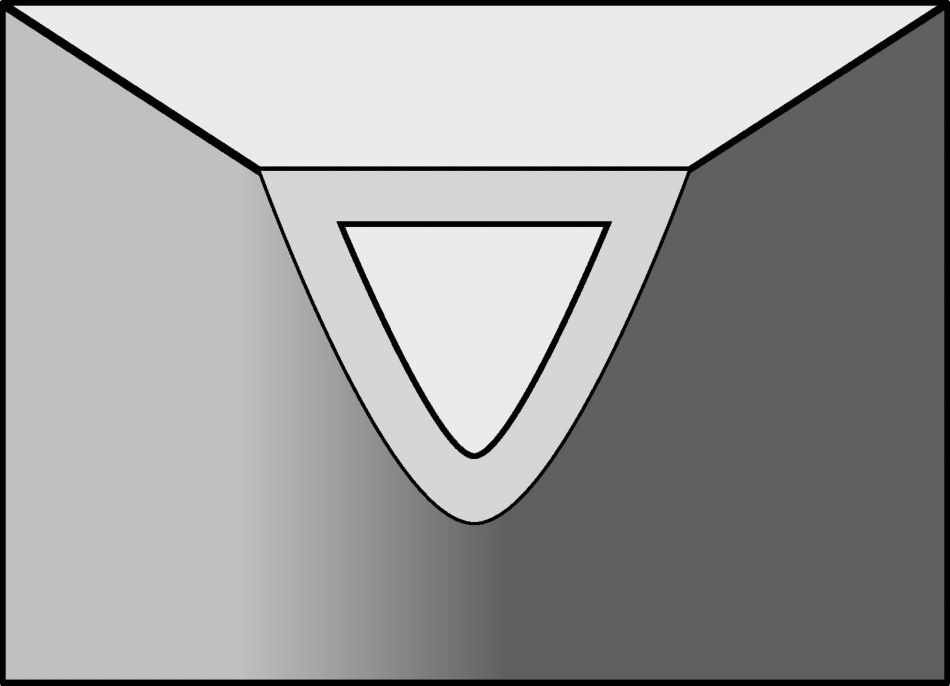

Through Coolant: Axial: Tapping
Manufacturer’s Specs: UNC
Manufacturer’s Specs: UNF
Coated carbide. PVD fine-grain carbide substrate with high-hardness TiCN coating.
Universal grade for thread milling most materials.
