| SAP Material Number | 3663089 |
| ISO Catalog Number | LNUX301940T |
| ANSI Catalog Number | LNUX301940T |
| Grade | TN7115 |

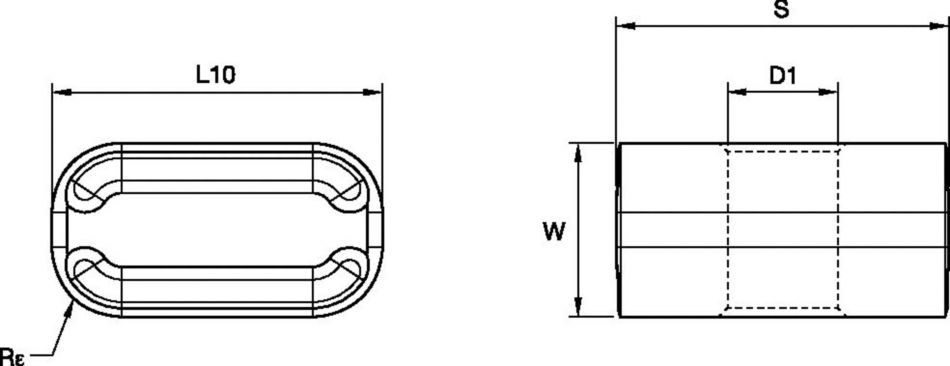

| [W] Insert Width | 12.0000 mm |
| [W] Insert Width | .4724 in |
| [L10] Insert Cutting Edge Length | 30.0000 mm |
| [L10] Insert Cutting Edge Length | 1.181 in |
| [S] Insert Thickness | 19.0500 mm |
| [S] Insert Thickness | .7500 in |
| [Rε] Corner Radius | 4.0000 mm |
| [Rε] Corner Radius | .1575 in |
| [D1] Insert Hole Size | 6.3500 mm |
| [D1] Insert Hole Size | .2500 in |
Coated carbide. MT-CVD/CVD — TiN-TiCN-Al2O3-TiN. Good balance of wear resistance and toughness
properties. Light and medium machining. For steels.
