NCM • Square Shank • KM Micro™ Clamping Units

Square Shanks

Метрическая система
Дюймовая система
SAP Material Number 1922492
ISO Catalog Number KM12NCM1212100
ANSI Catalog Number KM12NCM1212100

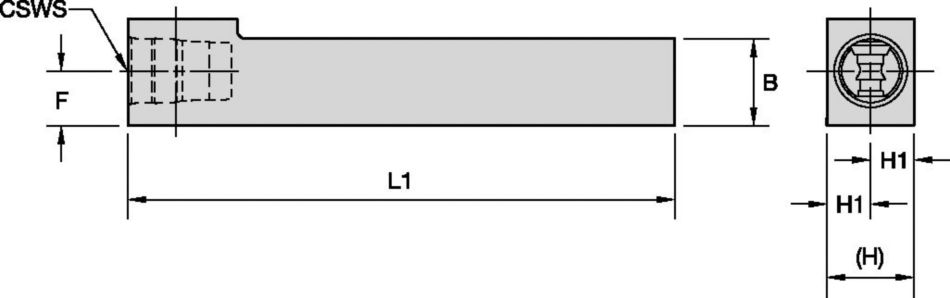

[CSWS] System Size Workpiece Side KM12
[B] Shank Width 12 mm
[B] Shank Width .472 in
[H] Shank Height 11.95 mm
[H] Shank Height .47 in
[H1] Centerline Height 6 mm
[H1] Centerline Height .236 in
[F] F Dimension 8 mm
[F] F Dimension .31 in
[L1] Gage Length 100 mm
[L1] Gage Length 3.934 in
Actuation Screw ID Drive Size 25 IP
Torque Newton Meters 6.750-8
Посмотреть все варианты продукции

Со стороны станка

загрузка...

Со стороны заготовки

загрузка...

Комплектующие for NCM • Square Shank • KM Micro™ Clamping Units

Spare Part
    ключ ключ
    ключ
    Spare Part
      Насадка отвертки Насадка отвертки
      Насадка отвертки
      Spare Part
        TORX DRIVER BIT EXTENDED 25IP - 50MM TORX DRIVER BIT EXTENDED 25IP - 50MM
        TORX DRIVER BIT EXTENDED 25IP - 50MM
        Spare Part
          Винт Винт
          Винт
          Spare Part
            Ключ Ключ
            Ключ
            Spare Part
              Гайка Гайка
              Гайка
              Spare Part
                Комплект запчастей Комплект запчастей
                Комплект запчастей
