      Square Shanks
      Square Shanks
      Square Shanks
      Square Shanks

      R/LCM • Square Shank • KM Micro™ Clamping Units

      Square Shanks

      Metric
      Inch
      SAP Material Number 1925740
      ISO Catalog Number KM12LCM08400
      ANSI Catalog Number KM12LCM08400

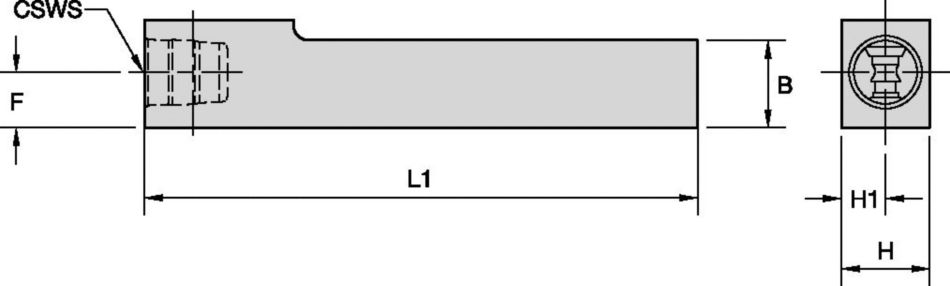

      [CSWS] System Size Workpiece Side KM12
      [B] Shank Width 12.5800
      [B] Shank Width .4953
      [H] Shank Height 12.7000
      [H] Shank Height .5000
      [H1] Centerline Height 6.7100
      [H1] Centerline Height .2642
      [F] F Dimension 8.0000
      [F] F Dimension .3100
      [L1] Gage Length 101.6000
      [L1] Gage Length 4.000
      Actuation Screw ID Drive Size 25 IP
      Torque Catalog Foot Pounds 5-6
      See all Product Variants

      Spare Parts for R/LCM • Square Shank • KM Micro™ Clamping Units

      Spare Part
        Комплект запчастей
        Комплект запчастей
        Spare Part
          Винт
          Винт
          Spare Part
            Гайка
            Гайка
            Spare Part
              ключ
              ключ
              Spare Part
                Насадка отвертки
                Насадка отвертки
                Spare Part
                  Ключ
                  Ключ
