Series 5323 • Modified Bottoming Chamfer • NPS , NPSF

NPS and NPSF Straight-Pipe Taps

Метрическая система
Дюймовая система
SAP Material Number 2748070
ISO Catalog Number 16361
ANSI Catalog Number 16361
Coating Uncoated

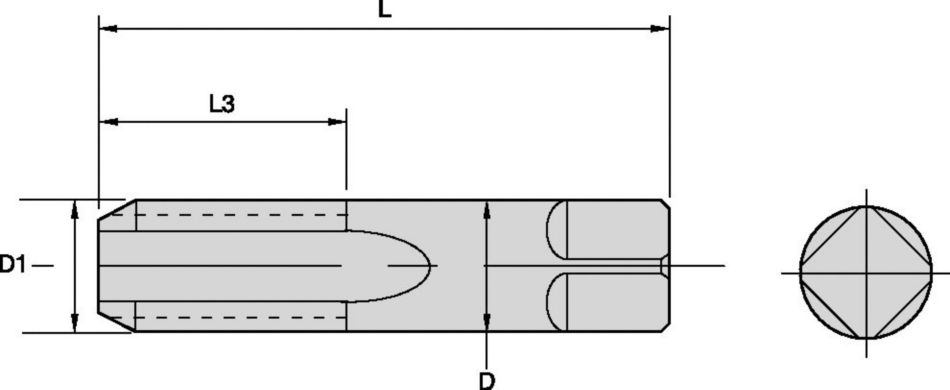

[D1-TDZ] Thread Diameter Size 3/4 - 14
[L] Overall Length 82.55 mm
[L] Overall Length 3.25 in
[L3] Thread Length 34.925 mm
[L3] Thread Length 1.375 in
[D] Adapter / Shank / Bore Diameter 23.02 mm
[D] Adapter / Shank / Bore Diameter .9063 in
[Z] Number of Flutes 5
Type of Thread NPS
Посмотреть все варианты продукции

Использование и область применения

  • Tapping: Pipe ThreadTapping: Pipe Thread
  • 3849038490
  • Flood Coolant: TappingFlood Coolant: Tapping
  • Manufacturer’s Specs: ANSI NPSManufacturer’s Specs: ANSI NPS
  • Manufacturer’s Specs: ANSI NPSFManufacturer’s Specs: ANSI NPSF

Характеристики и преимущества

Features and Benefits:
  • Manufactured from select tap high-speed steel.

  • Ground thread pipe taps are standard in American National Standard Straight Pipe (NPS) thread form and American National Standard Dryseal Straight Pipe (NPSF) thread form.

  • NPS threads are suitable for tapping holes or couplings for low pressure work when used with a sealer; also suitable for NPSC and NPSM work.

  • NPSF dryseal taps are intended for low pressure work, such as fuel and oil lines where a sealer is not used.

  • Dryseal threads give a low-pressure, pressure-tight joint without the use of a sealer.
