| SAP Material Number | 3870391 |
| ISO Catalog Number | SSRCL12CA12 |
| ANSI Catalog Number | SSRCL12CA12 |
| Grade | WG |

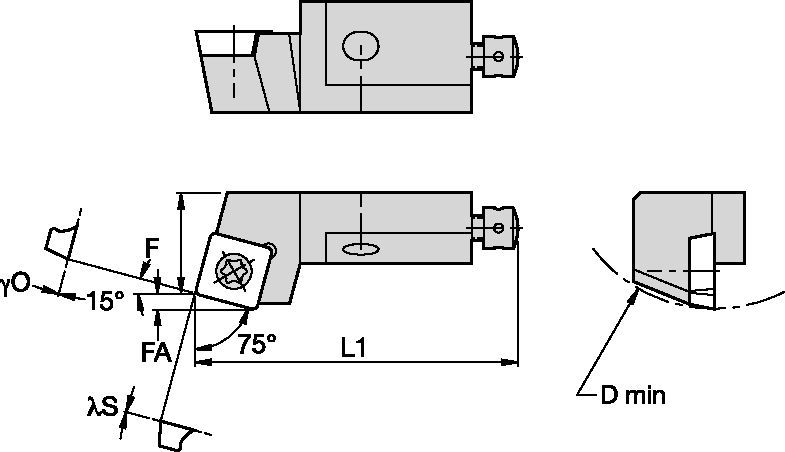

| [DM] Minimum Bore Diameter | 50.0000 mm |
| [DM] Minimum Bore Diameter | 1.968 in |
| [F] F Dimension | 20.0000 mm |
| [F] F Dimension | .7874 in |
| [L1] Tool Length | 55.0000 mm |
| [L1] Tool Length | 2.165 in |
| [FA] F A Dimension | 3.0600 mm |
| [FA] F A Dimension | .1205 in |
| Inclination Angle | -3.000 |
| [GAAO] Orthogonal Rake Angle | 0.000 |
| Gage Insert | SC..120408/SC..432 |
