STFP 90°

Пластины KENLOC™

Метрическая система
Дюймовая система
SAP Material Number 3870381
ISO Catalog Number STFPL08CA09
ANSI Catalog Number STFPL08CA09
Grade WG

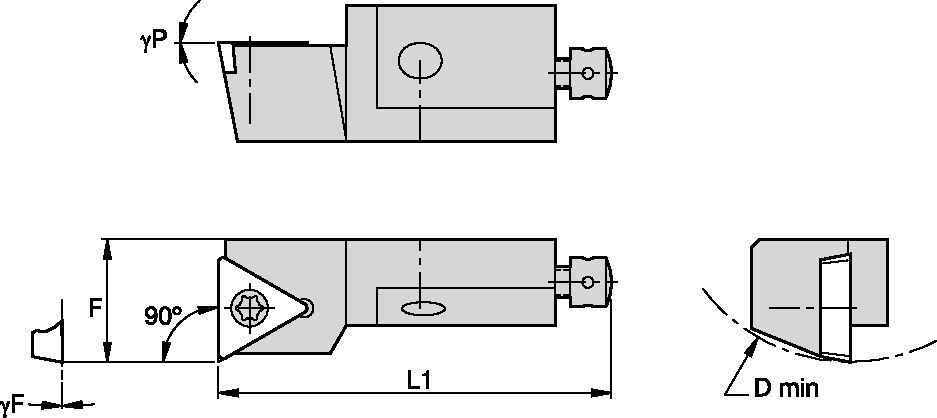

[DM] Minimum Bore Diameter 25 mm
[DM] Minimum Bore Diameter .9843 in
[F] F Dimension 10 mm
[F] F Dimension .3937 in
[L1] Tool Length 32 mm
[L1] Tool Length 1.259 in
[GAAP] Axial Rake Angle 0
Gage Insert TP..090204/TP..18151
Посмотреть все варианты продукции

Со стороны станка


Со стороны заготовки


Комплектующие for STFP 90°

Spare Part
    Spare Part
      Spare Part
        Spare Part
          Spare Part
            Spare Part
