| SAP Material Number | 2823851 |
| ISO Catalog Number | TPCH110204 |
| ANSI Catalog Number | TPCH221 |
| Grade | CG6 |

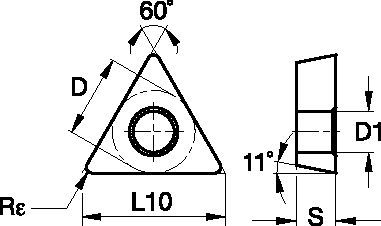

| [D] Insert IC Size | 6.5000 mm |
| [D] Insert IC Size | .2560 in |
| [L10] Insert Cutting Edge Length | 11.2600 mm |
| [L10] Insert Cutting Edge Length | .4430 in |
| [S] Insert Thickness | 2.3830 mm |
| [S] Insert Thickness | .0938 in |
| [Rε] Corner Radius | 0.3810 mm |
| [Rε] Corner Radius | .0150 in |
| [D1] Insert Hole Size | 3.3020 mm |
| [D1] Insert Hole Size | .1300 in |
Coated carbide. CVD — TiC-TiCN-TiN. Tri-phase coating on a hard, low binder content, fine-grained grade. High-speed, general-purpose grade for all kinds of steel. Gold in color.
