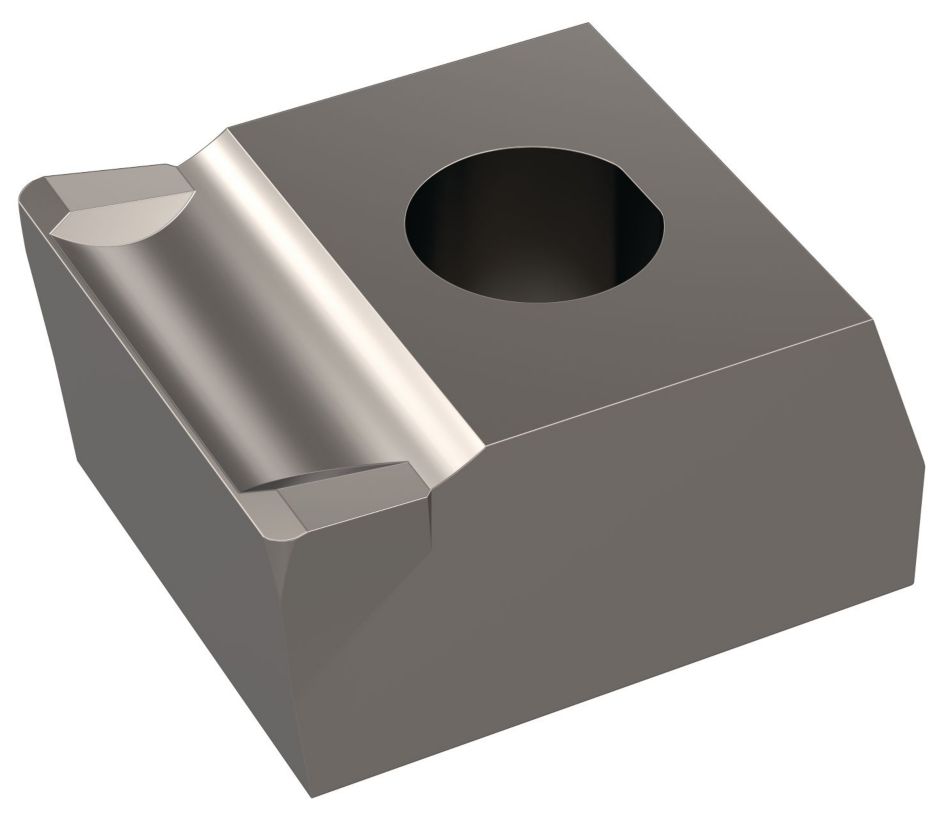

溝入れおよび旋削インサート • LG LGN0

溝入れインサート

ワーク材料

P Steel
M Stainless Steel
K Cast Iron
N Non-Ferrous
S High-Temp Alloys
フィルタを選択
Filters
フィルタ
フィルタ表示
メートル
インチ
keyFilters
Workpiece Material
Workpiece Material
  • P Steel (6)
    • P0
      Low-Carbon Steels, Long Chipping C < .25%; <125 HB; <530 N/mm^2 UTS
      (6)
    • P1
      Low-Carbon Steels, Short Chipping C < .25%; <125 HB; <530 N/mm^2 UTS
      (6)
    • P2
      Medium and High Carbon Steels C < .25%; <220 HB; <25 HRC; >530 N/mm^2 UTS
      (6)
    • P3
      Alloy Steels & Tool Steels C > .25%; <330 HB; <35 HRC; 600-850 N/mm^2 UTS
      (6)
    • P4
      Alloy Steels & Tool Steels C > .25%; 350-420 HB; 35-43 HRC; 850-1400 N/mm^2 UTS
      (6)
    • P5
      Ferritic, Martensitic, and PH Stainless Steels <330 HB; <35 HRC; 600-900 N/mm^2 UTS
      (6)
    • P6
      High Strength Ferritic, Martensitic, and PH Stainless Steels 350-450 HB; 35-43 HRC; 900-2400 N/mm^2 UTS
      (6)
  • M Stainless Steel (9)
    • M1
      Austenitic Stainless Steel 130-200 HB; <600 N/mm^2 UTS
      (9)
    • M2
      High Strength Austenitic Stainless and Cast Stainless Steels 150-230 HB; <25 HRC; >600 N/mm^2 UTS
      (9)
    • M3
      Duplex Stainless Steel 135-275 HB; <30 HRC; 500-1200 N/mm^2 UTS
      (9)
  • K Cast Iron (4)
    • K1
      Gray Cast Iron 120-290 HB; <32 HRC; 125-500 N/mm^2 UTS
      (4)
    • K2
      Low and Medium Strength CGI and Ductile Irons 130-260 HB; <28 HRC; <600 N/mm^2 UTS
      (4)
    • K3
      High Strength Ductile and Austempered Ductile Iron 180-350 HB; <43 HRC; >600 N/mm^2 UTS
      (4)
  • N Non-Ferrous Materials (3)
    • N1
      Wrought Aluminum
      (3)
    • N2
      Low-Silicon Aluminum Alloys and Magnesium Alloys Si <12.2%
      (3)
    • N3
      High-Silicon Aluminum Alloys Si >12.2%
      (3)
    • N4
      Copper, Brass, Zinc-based on machinability index range of 70-100
      (3)
    • N5
      Nylon, Plastics, Rubbers, Phenolics, Resins, Fiberglass
      (3)
    • N6
      Carbon, Graphite Composites, CFRP
      (3)
    • N7
      MMC's
      (3)
  • S High-Temp Alloys (3)
    • S1
      Iron-Based, Heat-Resistant Alloys 160-260 HB; 25-48 HRC; 500-1200 N/mm^2 UTS
      (3)
    • S2
      Cobalt-Based, Heat-Resistant Alloys 250-450 HB; 25-48 HRC; 1000-1450 N/mm^2 UTS
      (3)
    • S3
      Nickel-Based, Heat Resistant Alloys 160-450 HB; <48 HRC; 600-1700 N/mm^2 UTS
      (3)
    • S4
      Titanium and Titanium Alloys 300-400 HB; 33-43 HRC; 900-1600 N/mm^2 UTS
      (3)
Applications
Applications
  • Grooving Grooving (4)
Cutting Condition
Cutting Condition
  • Heavily Interrupted Cut (5)
  • Lightly Interrupted Cut (5)
application
Minimum Feed
Minimum Feed
Drilling Condition
Drilling Condition
  • Heavily Interrupted Cut (5)
  • Lightly Interrupted Cut (5)
Grade Of Cutting Tool
Grade Of Cutting Tool
  • THM (3)
  • TN7535 (1)
  • WU35CT (5)
frontEnd
Cutting Width
Cutting Width
  • 0.321 in (3)
  • 0.4 in (2)
  • 0.48 in (2)
  • 0.559 in (1)
  • 0.638 in (1)
Cutting Width Min to Cutting Width Max
Cutting Width
Cutting Width
  • 8.15 mm (3)
  • 10.15 mm (2)
  • 12.201 mm (2)
  • 14.201 mm (1)
  • 16.2 mm (1)
Cutting Width Min to Cutting Width Max
insertGeometry
Insert Seat Size
Insert Seat Size
  • 10 (2)
  • 12 (2)
  • 14 (1)
  • 16 (1)
  • 8 (3)
No filters matching ""
以下に示すパラメータのいずれかを使用して表示列を変更することができます。最大7列まで表示できます。
表示 1- 9 / 9 結果
列を選択
フィルタを選択
メートル
インチ
表示
メートル
インチ
SAP Material Number ISO Catalog Number ANSI Catalog Number Grade [W] Cutting Width [W] Cutting Width [RR] Corner Radius [RR] Corner Radius
2017973 123568080 123568080 THM 8.1500 .3213 0.8000 .0315
    定価:
    $34.31 /各
    価格::
    数量
    6909025 123568080 123568080 WU35CT 8.1500 .3213 0.8000 .0315
      定価:
      $37.38 /各
      価格::
      数量
      2952363 123568080 123568080 TN7535 8.1500 .3213 0.8000 .0315
        定価:
        $37.17 /各
        価格::
        数量
        2017976 123568100 123568100 THM 10.1500 .4000 0.8000 .0315
          定価:
          $34.48 /各
          価格::
          数量
          6909026 123568100 123568100 WU35CT 10.1500 .4000 0.8000 .0315
            定価:
            $38.79 /各
            価格::
            数量
            2017980 123568120 123568120 THM 12.2000 .4800 0.8000 .0315
              定価:
              $36.36 /各
              価格::
              数量
              6909027 123568120 123568120 WU35CT 12.2000 .4800 0.8000 .0315
                定価:
                $40.03 /各
                価格::
                数量
                6909028 123568140 123568140 WU35CT 14.2000 .5594 0.8000 .0315
                  定価:
                  $40.93 /各
                  価格::
                  数量
                  6909029 123568160 123568160 WU35CT 16.2000 .6382 0.8000 .0315
                    定価:
                    $42.52 /各
                    価格::
                    数量
                    定価:
                    割引: %
                    価格::
                    配置転換 この品目はありません
                    交換品 この品目は、代理店経由で入手できる場合があります
                    数量

                    販売包装単位

                    等級

                    • THM
                      THM

                      Uncoated carbide. Extraordinarily good balance of hardness, wear resistance, edge stability, and toughness. Light and medium machining. For cast iron and all non-ferrous metals and non-metals. Useful in unfavourable conditions.

                      S High-Temp Alloys
                      K Cast Iron
                      M Stainless Steel
                      N Non-Ferrous
                    • TN7525
                      TN7525

                      MT-CVD/CVD — TiN-TiCN-Al2O3-TiN coated carbide. Light and medium machining for steels and nodular cast irons.

                      P Steel
                      K Cast Iron
                      M Stainless Steel
                    • TN7535
                      TN7535

                      MT-CVD/CVD — TiN-TiCN-Al2O3 coated carbide. Medium and heavy machining for steels and nodular cast iron.

                      P Steel
                      K Cast Iron
                      M Stainless Steel
                    • TTM09
                    • WU35CT
                      WU35CT

                      Coated carbide MT-CVD/CVD – TiN-TiCN-Al203-TiN. A good combination of tough substrate and wear-resistant, multi-layer CVD coating. Suitable for rough turning in most steels and also stainless steel.

                      P Steel
                      M Stainless Steel
