M390 • 一体型SD1204..• メトリック
一体型 • SD1204..
メートル
インチ
| SAP Material Number | 2021422 |
| ISO Catalog Number | 12393041200 |
| ANSI Catalog Number | 12393041200 |
| Grade | W |

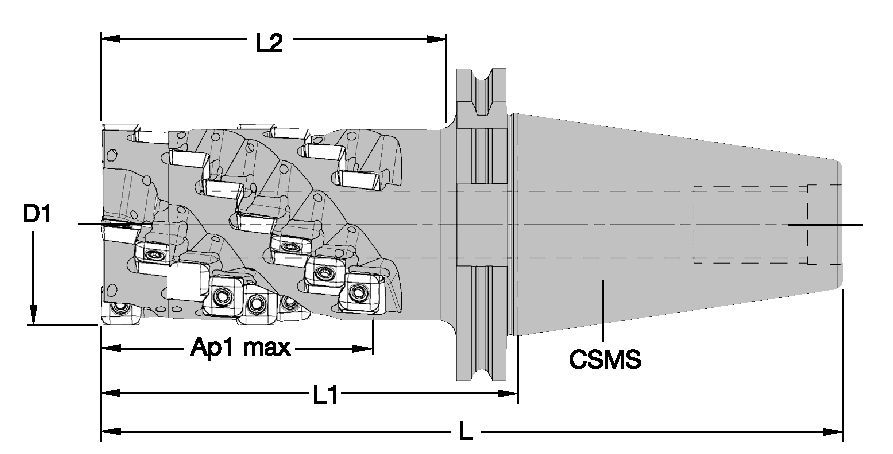

| [D1] Effective Cutting Diameter | 50.0000 mm |
| [D1] Effective Cutting Diameter | 1.969 in |
| [L] Overall Length | 207.0000 mm |
| [L] Overall Length | 8.150 in |
| [L1] Gage Length | 105.0000 mm |
| [L1] Gage Length | 4.134 in |
| [L2] Head Length | 82.0000 mm |
| [L2] Head Length | 3.228 in |
| [AP1MAX] 1st Maximum Cutting Depth | 64.0000 mm |
| [AP1MAX] 1st Maximum Cutting Depth | 2.520 in |
| Number of Inserts | 12 |
| [Z] Number of Flutes | 3 |
| [CSMS] System Size Machine Side | DV50 |
| Max RPM | 14000 |
| Coolant Supply | Y |
| Weight Kilograms | 3.40 |
使用法と用途
SKシャンク（Rübig）
側面加工／ショルダー加工：スクエアエンド
溝加工：スクエアエンド
フェイスミーリング
ミーリング — スルークーラント
ワーク材料
P
Steel
M
Stainless Steel
K
Cast Iron
N
Non-Ferrous
S
High-Temp Alloys
H
Hardened Materials
特徴と利点
- 4コーナー仕様インサート。
- 交換可能なエンドキャップ。
- ポジのねじれ角により、生産性を向上。
等級
-
WP SteelS High-Temp AlloysH Hardened MaterialsK Cast IronM Stainless SteelN Non-Ferrous
インサート選択の手引き
| Grupa materiałowa | Obróbka lekka | Obróbka średnia | Obróbka ciężka | |||
| Geometria | Gatunek | Geometria | Gatunek | Geometria | Gatunek | |
| P1–P2 | .E..ML | TN6540 | .S..MM | TN6540 | .S..MH | TN6540 |
| P3–P4 | .E..ML | TN6540 | .S..MM | TN6540 | .S..MH | TN6540 |
| P5–P6 | .E..ML | TN6540 | .S..MM | TN6540 | .S..MH | TN6540 |
| M1–M2 | .E..ML | TN6540 | .S..MM | TN6540 | .S..MH | TN6540 |
| M3 | .E..ML | WP35CM | .S..MM | WS30PM | .S..MH | WP35CM |
| K1–K2 | .E..ML | WK15CM | .E..ML | WK15CM | .S..MH | WK15CM |
| K3 | .E..ML | WK15CM | .S..MM | TN6525 | .S..MH | TN6525 |
| N1–N2 | – | – | – | – | – | – |
| N3 | – | – | – | – | – | – |
| S1–S2 | .E..ML | TN6540 | .S..MM | TN6540 | .S..MM | TN6540 |
| S3 | .E..ML | TN6540 | .S..MM | WS30PM | .S..MM | TN6540 |
| S4 | .E..ML | TN6540 | .S..MM | WS30PM | .S..MM | TN6540 |
| H1 | .S..MM | WS30PM | .S..MM | WS30PM | .S..MM | WS30PM |
推奨フィード量の開始値［mm］
| Geometria płytki | Zalecany posuw na ostrze (fz) zależny od % szerokości frezowania (ae) | Geometria płytki | ||||||||||||||
| 5 % | 30 % | 20 % | 10 % | 40 100 % | ||||||||||||
| .F..ALP | 0,12 | 0,23 | 0,46 | 0,08 | 0,17 | 0,33 | 0,06 | 0,13 | 0,25 | 0,06 | 0,11 | 0,22 | 0,05 | 0,10 | 0,20 | .F..ALP |
| .E..ML | 0,12 | 0,35 | 0,58 | 0,08 | 0,25 | 0,42 | 0,06 | 0,19 | 0,31 | 0,06 | 0,17 | 0,27 | 0,05 | 0,15 | 0,25 | .E..ML |
| .S..MM | 0,12 | 0,42 | 0,70 | 0,08 | 0,30 | 0,50 | 0,06 | 0,23 | 0,38 | 0,06 | 0,20 | 0,33 | 0,05 | 0,18 | 0,30 | .S..MM |
| .S..MH | 0,23 | 0,54 | 0,85 | 0,17 | 0,39 | 0,61 | 0,13 | 0,29 | 0,46 | 0,11 | 0,25 | 0,40 | 0,10 | 0,23 | 0,36 | .S..MH |
| Obróbka lekka | Obróbka średnia | Obróbka ciężka |
推奨切削速度の開始値［m/min］
| Grupa materiałowa | THM-U | TN6520 | TN6525 | TN6540 | TTM08 | |||||||||||
| P | 0 | – | – | – | – | – | – | 340 | 265 | 235 | 300 | 235 | 200 | – | – | – |
| 1 | – | – | – | – | – | – | 340 | 265 | 235 | 300 | 235 | 200 | 230 | 200 | 190 | |
| 2 | – | – | – | – | – | – | 265 | 210 | 180 | 210 | 160 | 140 | 195 | 170 | 140 | |
| 3 | – | – | – | – | – | – | 235 | 180 | 155 | 180 | 140 | 115 | 180 | 150 | 125 | |
| 4 | – | – | – | – | – | – | 195 | 140 | 120 | 150 | 110 | 90 | 160 | 130 | 105 | |
| 5 | – | – | – | – | – | – | 260 | 195 | 165 | 200 | 150 | 125 | – | – | – | |
| 6 | – | – | – | – | – | – | 170 | 135 | 110 | 135 | 100 | 85 | – | – | – | |
| M | 1 | – | – | – | – | – | – | 160 | 100 | 65 | 110 | 65 | 50 | – | – | – |
| 2 | – | – | – | – | – | – | 100 | 65 | 40 | 65 | 40 | 35 | – | – | – | |
| 3 | – | – | – | – | – | – | 105 | 65 | 45 | 70 | 40 | 35 | – | – | – | |
| K | 1 | 190 | 170 | 150 | 375 | 265 | 190 | 230 | 205 | 185 | 185 | 170 | 150 | – | – | – |
| 2 | – | – | – | 325 | 210 | 160 | 180 | 160 | 150 | 145 | 130 | 115 | – | – | – | |
| 3 | – | – | – | 250 | 190 | 135 | 150 | 135 | 120 | 130 | 120 | 105 | – | – | – | |
| N | 1 | 2000 | 1200 | 1000 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | 1365 | 815 | 665 | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | 800 | 500 | 400 | – | – | – | – | – | – | – | – | – | – | – | – | |
| S | 1 | – | – | – | – | – | – | – | – | – | 40 | 30 | 25 | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | 20 | 15 | 10 | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | 60 | 35 | 25 | – | – | – | |
| 4 | – | – | – | – | – | – | – | – | – | 50 | 25 | 20 | – | – | – | |
| H | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| Grupa materiałowa | WK15CM | WP25PM | WP35CM | WP40PM | WS30PM | WS40PM | |||||||||||||
| P | 0 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 1 | – | – | – | 330 | 285 | 270 | 455 | 395 | 370 | 295 | 260 | 245 | – | – | – | 280 | 245 | 230 | |
| 2 | – | – | – | 275 | 240 | 200 | 280 | 255 | 230 | 250 | 215 | 180 | – | – | – | 235 | 205 | 170 | |
| 3 | – | – | – | 255 | 215 | 175 | 255 | 230 | 205 | 230 | 195 | 160 | – | – | – | 215 | 185 | 150 | |
| 4 | – | – | – | 225 | 185 | 150 | 190 | 175 | 160 | 205 | 170 | 135 | – | – | – | 195 | 160 | 130 | |
| 5 | – | – | – | 185 | 170 | 150 | 260 | 230 | 210 | 170 | 155 | 135 | – | – | – | 160 | 140 | 130 | |
| 6 | – | – | – | 165 | 125 | 100 | 160 | 135 | 110 | 150 | 115 | 90 | – | – | – | 140 | 110 | 85 | |
| M | 1 | – | – | – | 205 | 180 | 165 | 205 | 185 | 155 | 195 | 170 | 155 | 225 | 200 | 185 | 260 | 190 | 115 |
| 2 | – | – | – | 185 | 160 | 130 | 185 | 160 | 140 | 175 | 150 | 125 | 205 | 180 | 145 | 230 | 170 | 105 | |
| 3 | – | – | – | 140 | 120 | 95 | 145 | 130 | 115 | 130 | 115 | 90 | 155 | 135 | 105 | 190 | 140 | 80 | |
| K | 1 | 420 | 385 | 340 | 230 | 205 | 185 | 295 | 265 | 240 | – | – | – | – | – | – | – | – | – |
| 2 | 335 | 295 | 275 | 180 | 160 | 150 | 235 | 210 | 190 | – | – | – | – | – | – | – | – | – | |
| 3 | 280 | 250 | 230 | 150 | 135 | 120 | 195 | 175 | 160 | – | – | – | – | – | – | – | – | – | |
| N | 1 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 1075 | 945 | 945 |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 945 | 875 | 845 | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | 875 | 760 | 760 | |
| S | 1 | – | – | – | 40 | 35 | 25 | – | – | – | 40 | 35 | 30 | 45 | 40 | 30 | 62 | 45 | 27 |
| 2 | – | – | – | 40 | 35 | 25 | – | – | – | 40 | 35 | 30 | 45 | 40 | 30 | 55 | 40 | 26 | |
| 3 | – | – | – | 50 | 40 | 25 | – | – | – | 50 | 40 | 30 | 55 | 45 | 30 | 64 | 46 | 29 | |
| 4 | – | – | – | 70 | 50 | 35 | 66 | 50 | 33 | 65 | 50 | 35 | 85 | 60 | 40 | 90 | 66 | 42 | |
| H | 1 | – | – | – | 120 | 90 | 70 | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
