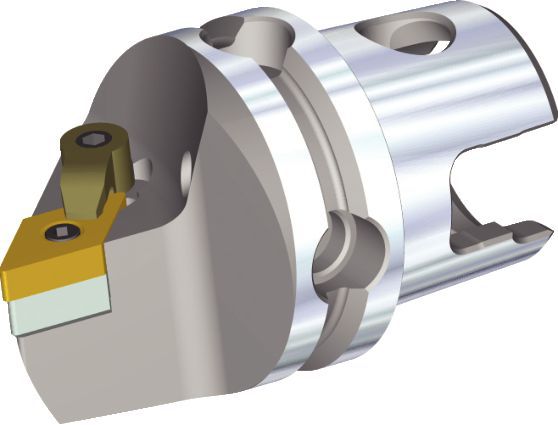

MDMN 48° • 93° application • Centerline

M-クランプセンターライン

メートル
インチ
SAP Material Number 3487476
ISO Catalog Number KM63TSMDMNL1506115
ANSI Catalog Number KM63TSMDMNL1506115
[L1] Tool Length 115 mm
[L1] Tool Length 4.528 in
[F] F Dimension 0 mm
[F] F Dimension in
[DM] Minimum Bore Diameter 100 mm
[DM] Minimum Bore Diameter 3.937 in
Gage Insert DN..150608/DN..442
Weight Kilograms 1.83
Weight Pounds 4.04
すべての改良品を表示

使用法と用途

  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
  • シャンク — KM-TS ISO 26622シャンク — KM-TS ISO 26622
  • Coolant — Through Coolant  100 bar (1500 psi)  MaximumCoolant — Through Coolant 100 bar (1500 psi) Maximum
  • クーラント — スルークーラント 最大100 bar(1500 psi)クーラント — スルークーラント 最大100 bar(1500 psi)

ワーク材料

P Steel
M Stainless Steel
K Cast Iron
N Non-Ferrous
S High-Temp Alloys
H Hardened Materials
C CFRP Materials

機械側

荷重...

ワーク側

荷重...

スペア部品 for MDMN 48° • 93° application • Centerline

Spare Part
    SHIM IDSN-432 (SKDN-463) SHIM IDSN-432 (SKDN-463)
    SHIM IDSN-432 (SKDN-463)
    Spare Part
      CKM23 CKM23
      CKM23
      Spare Part
        STCM11 STCM11
        STCM11
        Spare Part
          KLM46L KLM46L
          KLM46L
