TopThread™ およびTopGroove™
TopThread™ およびTopGroove™
TopThread™ およびTopGroove™
TopThread™ およびTopGroove™
Select the files you wish to request
Downloads
Request {{cadTool}} format
{{cadTool}} format is not available

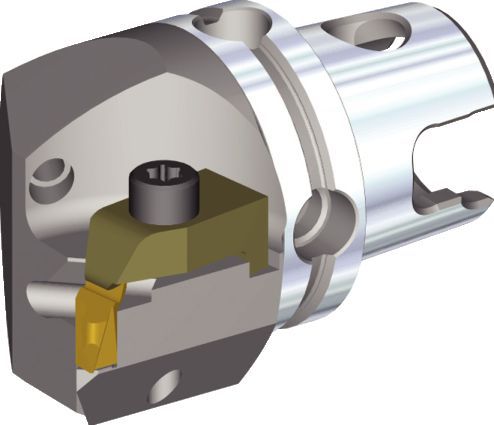

NR 45°

TopThread™ およびTopGroove™

メートル
インチ
SAP Material Number 3753586
ISO Catalog Number KM50TSNRL3
ANSI Catalog Number KM50TSNRL3
[L1] Tool Length 50 mm
[L1] Tool Length 1.969 in
[F] F Dimension 35 mm
[F] F Dimension 1.378 in
[DM] Minimum Bore Diameter 70 mm
[DM] Minimum Bore Diameter 2.756 in
Gage Insert NU3R
Weight Kilograms 0.57
Weight Pounds 1.26
すべての改良品を表示

使用法と用途

  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
  • シャンク — KM-TS ISO 26622シャンク — KM-TS ISO 26622
  • Coolant — Through Coolant  100 bar (1500 psi)  MaximumCoolant — Through Coolant 100 bar (1500 psi) Maximum
  • クーラント — スルークーラント 最大100 bar(1500 psi)クーラント — スルークーラント 最大100 bar(1500 psi)
  • ThreadingThreading

ワーク材料

P Steel
M Stainless Steel
K Cast Iron
N Non-Ferrous
S High-Temp Alloys
H Hardened Materials

機械側

荷重...

ワーク側

荷重...

スペア部品 for NR 45°

Spare Part
    CM72 CM72
    CM72
