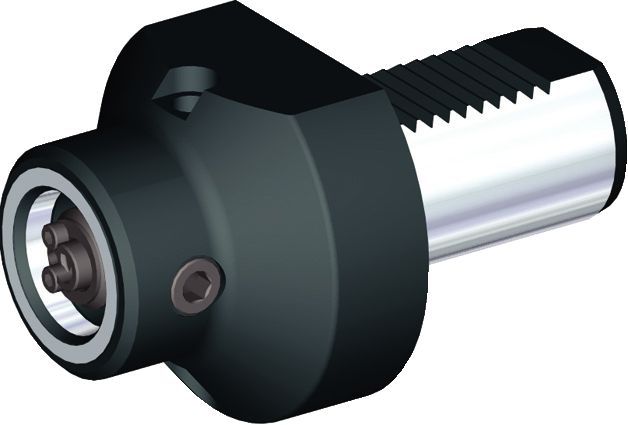

R/L CML • VDI軸方向、大本体径

旋盤

メートル
インチ
SAP Material Number 2013052
ISO Catalog Number KM40RCMLVDI3050
ANSI Catalog Number KM40RCMLVDI3050
[CSWS] System Size Workpiece Side KM40
[CSMS] System Size Machine Side VDI30
[D1] Adapter / Shank / Bore Diameter 40 mm
[D1] Adapter / Shank / Bore Diameter 1.574 in
[D2] Body Diameter 1 Workpiece Side 48 mm
[D2] Body Diameter 1 Workpiece Side 1.889 in
[D] Adapter / Shank / Bore Diameter 30 mm
[D] Adapter / Shank / Bore Diameter 1.181 in
[L1] Gage Length 50 mm
[L1] Gage Length 1.968 in
[L21] Usable Length 23 mm
[L21] Usable Length .9055 in
[LS] Shank Length 55 mm
[LS] Shank Length 2.165 in
[D21] Body Diameter 2 Workpiece Side 68 mm
[D21] Body Diameter 2 Workpiece Side 2.677 in
Actuation Screw ID Drive Size 6 mm
Torque Catalog Newton Meters 12-16
Weight Kilograms 0.98
すべての改良品を表示

使用法と用途

  • クーラント — スルークーラントクーラント — スルークーラント
  • Shank: Cylindrical VDI DIN 69880Shank: Cylindrical VDI DIN 69880

機械側

荷重...

ワーク側

荷重...

スペア部品 for R/L CML • VDI軸方向、大本体径

Spare Part
    KM40-PKG3L KM40-PKG3L
