SCLP 95°-KM40 MM Steel BB

S-Clamping

メートル
インチ
SAP Material Number 3955515
ISO Catalog Number KM40TSS16FSCLPL09
ANSI Catalog Number KM40TSS16FSCLPL09

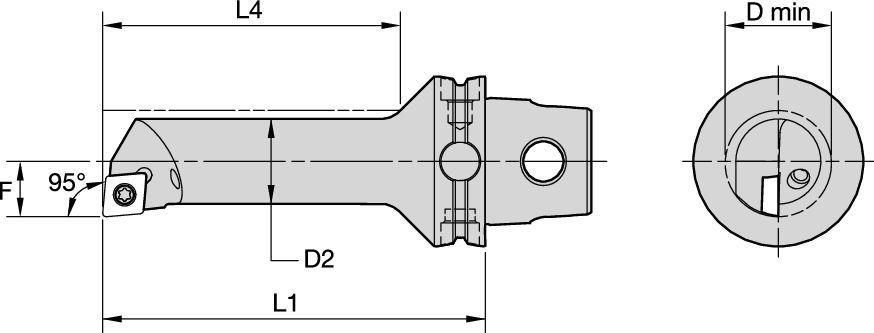

[D2] Body Diameter 1 Workpiece Side 16 mm
[D2] Body Diameter 1 Workpiece Side .6299 in
[DM] Minimum Bore Diameter 20 mm
[DM] Minimum Bore Diameter .7874 in
[F] F Dimension 11 mm
[F] F Dimension .4331 in
[L4] Maximum Boring Depth 56.11 mm
[L4] Maximum Boring Depth 2.209 in
[L1] Tool Length 80 mm
[L1] Tool Length 3.149 in
Gage Insert CP..09T308/CP..3252
すべての改良品を表示

使用法と用途

  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
  • シャンク — KM-TS ISO 26622シャンク — KM-TS ISO 26622
  • Coolant — Through Coolant  100 bar (1500 psi)  MaximumCoolant — Through Coolant 100 bar (1500 psi) Maximum
  • クーラント — スルークーラント 最大100 bar(1500 psi)クーラント — スルークーラント 最大100 bar(1500 psi)

ワーク材料

P Steel
M Stainless Steel
K Cast Iron
N Non-Ferrous
S High-Temp Alloys
H Hardened Materials
C CFRP Materials

スペア部品 for SCLP 95°-KM40 MM Steel BB

Spare Part
    TAPERED HEAD SCREW TORX M3.5 x 0.6-4hT15 TAPERED HEAD SCREW TORX M3.5 x 0.6-4hT15
    TAPERED HEAD SCREW TORX M3.5 x 0.6-4hT15
