STFP 90° • KM40TS
S-Clamping
メートル
インチ
| SAP Material Number | 3955539 |
| ISO Catalog Number | KM40TSS16FSTFPR11 |
| ANSI Catalog Number | KM40TSS16FSTFPR11 |

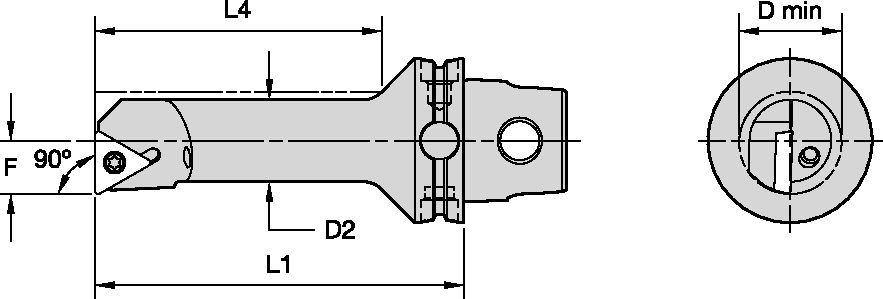

| [D2] Body Diameter 1 Workpiece Side | 16.0000 mm |
| [D2] Body Diameter 1 Workpiece Side | .6299 in |
| [DM] Minimum Bore Diameter | 20.0000 mm |
| [DM] Minimum Bore Diameter | .7874 in |
| [F] F Dimension | 11.0000 mm |
| [F] F Dimension | .4331 in |
| [L4] Maximum Boring Depth | 56.1100 mm |
| [L4] Maximum Boring Depth | 2.209 in |
| [L1] Tool Length | 80.0000 mm |
| [L1] Tool Length | 3.149 in |
| Gage Insert | TP..110204/TP..2151 |
| Weight Kilograms | 0.28 |
| Weight Pounds | 0.62 |
使用法と用途
シャンク — KM-TS ISO 26622
Shank - KM-TS ISO 26622
Coolant — Through Coolant 100 bar (1500 psi) Maximum
クーラント — スルークーラント 最大100 bar（1500 psi）
スペア部品 for STFP 90° • KM40TS
Spare Part
INSERT SCREW (M2.5-0.45p -6.5)
INSERT SCREW (M2.5-0.45p -6.5)
