VSM490™-10 • Weldon®エンドミル • メトリック

Weldon®エンドミル • メトリック

メートル
インチ
SAP Material Number 6425575
ISO Catalog Number VSM490D032Z05B25XN10
ANSI Catalog Number VSM490D032Z05B25XN10

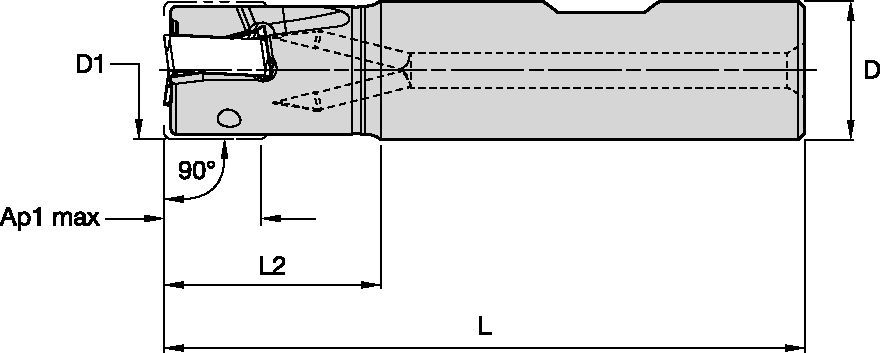

[D1] Effective Cutting Diameter 32 mm
[D1] Effective Cutting Diameter 1.26 in
[D] Adapter / Shank / Bore Diameter 25 mm
[D] Adapter / Shank / Bore Diameter .984 in
[L] Overall Length 89 mm
[L] Overall Length 3.504 in
[L2] Head Length 32 mm
[L2] Head Length 1.26 in
[AP1MAX] 1st Maximum Cutting Depth 10 mm
[AP1MAX] 1st Maximum Cutting Depth .394 in
Number of Inserts 5
Max RPM 29200
Coolant Supply Y
Weight Kilograms 0.33
すべての改良品を表示

使用法と用途

  • 100018357100018357
  • 溝加工:スクエアエンド溝加工:スクエアエンド
  • 側面加工/ショルダー加工:スクエアエンド側面加工/ショルダー加工:スクエアエンド
  • シャンク — ストレートWeldonシャンク — ストレートWeldon
  • ミーリング — スルークーラントミーリング — スルークーラント

ワーク材料

P Steel
M Stainless Steel
K Cast Iron
N Non-Ferrous
S High-Temp Alloys
H Hardened Materials

特徴と利点

  • 仕上げ機能がすべて1本の工具に組み込まれた真の90°の粗加工工具。
  • 軸方向のステップダウン加工において、クラス最高の壁面仕上げが可能。
  • 切削抵抗を低減し、非常に滑らかな切削動作を実現。
  • テーパー40スピンドルと駆動装置に完全に適応。
  • リデュースドシャンクをご用意。

機械側

荷重...

ワーク側

荷重...

スペア部品 for VSM490™-10 • Weldon®エンドミル • メトリック

Spare Part
    Spare Part ANTI-SEIZE LUBRICANT Spare Part ANTI-SEIZE LUBRICANT
    Spare Part ANTI-SEIZE LUBRICANT
    Spare Part
      Hardware CHAVE TORX DT-9IP Hardware CHAVE TORX DT-9IP
      Hardware CHAVE TORX DT-9IP
      Spare Part
        TORXPLUS-9 INSERT SCREW M3x0.5 TORXPLUS-9 INSERT SCREW M3x0.5
        TORXPLUS-9 INSERT SCREW M3x0.5
