No filters matching ""
Narrow by category:
View Products in
Metric
Inch

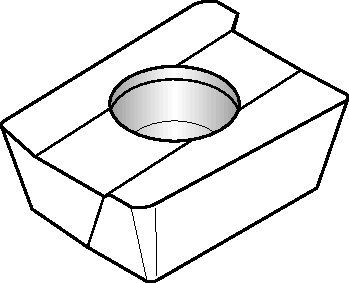

0°/90° Shoulder Mills • M680+

Inserts • AONT-MH
(8 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice Grade Cutting Edges per Insert [W] Insert Width [W] Insert Width [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [S] Insert Thickness [S] Insert Thickness [BS] Corner Facet Length [BS] Corner Facet Length [Rε] Corner Radius [Rε] Corner Radius Average Chip Thickness [HM] Average Chip Thickness [HM]
2957824 AONT10T308MH AONT10T308MH   TN6540 2 7.5440 .2970 10.4400 .4110 3.9700 .1563 1.0000 .0394 0.8000 .0312 0.1200 .0047
2957827 AONT10T308MH AONT10T308MH   TN6525 2 7.5440 .2970 10.4400 .4110 3.9700 .1563 1.0000 .0394 0.8000 .0312 0.1200 .0047
2030398 AONT10T308MH AONT10T308MH   TN7535 2 7.5440 .2970 10.4400 .4110 3.9700 .1563 1.0000 .0394 0.8000 .0312 0.1200 .0047
2031636 AONT10T308MH AONT10T308MH   TN7525 2 7.5440 .2970 10.4400 .4110 3.9700 .1563 1.0000 .0394 0.8000 .0312 0.1200 .0047
2031638 AONT10T308MH AONT10T308MH   TTM 2 7.544 .2970 10.440 .4110 3.970 .1563 1.000 .0394 0.800 .0312 0.120 .0047
2030399 AONT10T308MH AONT10T308MH   TN450 2 7.5440 .2970 10.4400 .4110 3.9700 .1563 1.0000 .0394 0.8000 .0312 0.1200 .0047

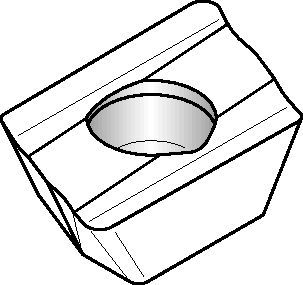

0°/90° Shoulder Mills • M680+

Inserts • AONT-ML
(12 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice Grade Cutting Edges per Insert [W] Insert Width [W] Insert Width [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [S] Insert Thickness [S] Insert Thickness [BS] Corner Facet Length [BS] Corner Facet Length [Rε] Corner Radius [Rε] Corner Radius Average Chip Thickness [HM] Average Chip Thickness [HM]
2957823 AONT10T308ML AONT10T308ML   TN6510 2 7.5000 .2952 10.3700 .4083 3.9200 .1543 1.0000 .0394 0.8000 .0312 0.0800 .0031
2030441 AONT10T308ML AONT10T308ML   TN7535 2 7.5000 .2952 10.3700 .4083 3.9200 .1543 1.0000 .0394 0.8000 .0312 0.0800 .0031
2030442 AONT10T308ML AONT10T308ML   TN450 2 7.500 .2952 10.370 .4083 3.920 .1543 1.000 .0394 0.800 .0312 0.080 .0031
2031641 AONT10T308ML AONT10T308ML   TTI25 2 7.500 .2952 10.370 .4083 3.920 .1543 1.000 .0394 0.800 .0312
2957761 AONT10T308ML AONT10T308ML   TN6502 2 7.500 .2952 10.370 .4083 3.920 .1543 1.000 .0394 0.800 .0312
2031639 AONT10T308ML AONT10T308ML   TN5515 2 7.500 .2952 10.370 .4083 3.920 .1543 1.000 .0394 0.800 .0312 0.080 .0031
0°/90° Shoulder Mills • M680+

Inserts • AONT-MM
(7 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice Grade Cutting Edges per Insert [W] Insert Width [W] Insert Width [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [S] Insert Thickness [S] Insert Thickness [BS] Corner Facet Length [BS] Corner Facet Length [Rε] Corner Radius [Rε] Corner Radius Average Chip Thickness [HM] Average Chip Thickness [HM]
2030453 AONT10T308MM AONT10T308MM   TN7535 2 7.5440 .2970 10.4400 .4110 3.9700 .1563 1.0000 .0394 0.8000 .0312 0.1000 .0039
2031644 AONT10T308MM AONT10T308MM   TN7525 2 7.5440 .2970 10.4400 .4110 3.9700 .1563 1.0000 .0394 0.8000 .0312 0.1000 .0039
2030454 AONT10T308MM AONT10T308MM   TN450 2 7.544 .2970 10.440 .4110 3.970 .1563 1.000 .0394 0.800 .0312 0.100 .0039
2031643 AONT10T308MM AONT10T308MM   TN5515 2 7.544 .2970 10.440 .4110 3.970 .1563 1.000 .0394 0.800 .0312 0.100 .0039
2031646 AONT10T308MM AONT10T308MM   THM 2 7.5440 .2970 10.4400 .4110 3.9700 .1563 1.0000 .0394 0.8000 .0312 0.1000 .0039
2031645 AONT10T308MM AONT10T308MM   TTI25 2 7.544 .2970 10.440 .4110 3.970 .1563 1.000 .0394 0.800 .0312 0.100 .0039

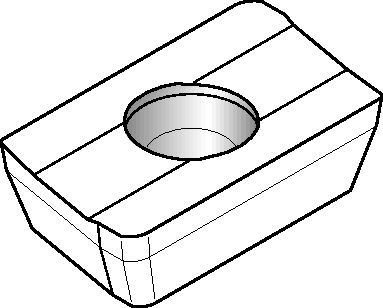

0°/90° Shoulder Mills • M680

Inserts • XPHT-AL
(9 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice Grade Cutting Edges per Insert [W] Insert Width [W] Insert Width [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [S] Insert Thickness [S] Insert Thickness [BS] Corner Facet Length [BS] Corner Facet Length [Rε] Corner Radius [Rε] Corner Radius Average Chip Thickness [HM] Average Chip Thickness [HM]
2031801 XPHT160416AL XPHT160416AL   THM 2 9.8000 .3858 15.6700 .6169 4.6600 .1835 0.9000 .0355 1.6000 .0625 0.0800 .0031
2031804 XPHT160432AL XPHT160432AL   THM 2 9.8000 .3858 15.6700 .6169 4.6600 .1835 1.2000 .0472 3.1700 .1250 0.0800 .0031
2963902 XPHT160408AL XPHT332AL   TN6502 2 9.8000 .3858 15.6700 .6169 4.6600 .1835 1.7000 .0669 0.8000 .0312 0.0800 .0031
2031796 XPHT160408AL XPHT332AL   THM 2 9.8000 .3858 15.6700 .6169 4.6600 .1835 1.7000 .0669 0.8000 .0312 0.0800 .0031
2031798 XPHT160412AL XPHT333AL   THM 2 9.8000 .3858 15.6700 .6169 4.6600 .1835 1.4000 .0551 1.2000 .0468 0.0800 .0031
2029067 XPHT160425AL XPHT336AL   THM 2 9.8000 .3858 15.6700 .6169 4.6600 .1835 1.2000 .0472 2.5000 .0984 0.0800 .0031
0°/90° Shoulder Mills • M680

Inserts • XPHT
(60 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice Grade Cutting Edges per Insert [W] Insert Width [W] Insert Width [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [S] Insert Thickness [S] Insert Thickness [BS] Corner Facet Length [BS] Corner Facet Length [Rε] Corner Radius [Rε] Corner Radius Average Chip Thickness [HM] Average Chip Thickness [HM]
2030373 XPHT160432 XPHT160432   TN7535 2 9.5250 .3750 15.6700 .6169 4.7600 .1875 1.2000 .0472 3.1700 .1250 0.1600 .0063
2030375 XPHT160440 XPHT3310   TN7535 2 9.5250 .3750 15.6700 .6169 4.7600 .1875 1.2000 .0472 4.0000 .1562 0.1600 .0063
2029043 XPHT160408 XPHT332   TN7535 2 9.5250 .3750 15.6700 .6169 4.7630 .1875 1.8000 .0709 0.8000 .0312 0.1600 .0063
5427389 XPHT160408 XPHT332   WK15CM 2 9.5250 .3750 15.6700 .6169 4.7630 .1875 1.8000 .0709 0.8000 .0312 0.1600 .0063
2964164 XPHT160408 XPHT332   TN6540 2 9.5250 .3750 15.6700 .6169 4.7630 .1875 1.8000 .0709 0.8000 .0312 0.1600 .0063
2030336 XPHT160412 XPHT333   TN7535 2 9.5250 .3750 15.6700 .6169 4.7630 .1875 1.5000 .0590 1.2000 .0468 0.1600 .0063
0°/90° Shoulder Mills • M680

Inserts • XPHT-ERGE
(23 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice Grade Cutting Edges per Insert [W] Insert Width [W] Insert Width [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [S] Insert Thickness [S] Insert Thickness [BS] Corner Facet Length [BS] Corner Facet Length [Rε] Corner Radius [Rε] Corner Radius Average Chip Thickness [HM] Average Chip Thickness [HM]
2405300 XPHT160408ERGE XPHT332ERGE   TN7525 2 9.4400 .3717 15.6700 .6169 4.7630 .1875 1.8000 .0710 0.8000 .0312 0.1200 .0047
2405301 XPHT160408ERGE XPHT332ERGE   TN7535 2 9.4400 .3717 15.6700 .6169 4.7630 .1875 1.8000 .0710 0.8000 .0312 0.1200 .0047
2964170 XPHT160408ERGE XPHT332ERGE   TN6540 2 9.4400 .3717 15.6700 .6169 4.7630 .1875 1.8000 .0710 0.8000 .0312 0.1200 .0047
5427399 XPHT160408ERGE XPHT332ERGE   WK15CM 2 9.4400 .3717 15.6700 .6169 4.7630 .1875 1.8000 .0710 0.8000 .0312 0.1200 .0047
2964172 XPHT160408ERGE XPHT332ERGE   TN6510 2 9.4400 .3717 15.6700 .6169 4.7630 .1875 1.8000 .0710 0.8000 .0312 0.1200 .0047
2405345 XPHT160412ERGE XPHT333ERGE   TN7525 2 9.4400 .3717 15.6700 .6169 4.7630 .1875 1.5000 .0590 1.2000 .0469 0.1200 .0047
0°/90° Shoulder Mills • M680

Inserts • XPHT-MR
(9 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice Grade Cutting Edges per Insert [W] Insert Width [W] Insert Width [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [S] Insert Thickness [S] Insert Thickness [BS] Corner Facet Length [BS] Corner Facet Length [Rε] Corner Radius [Rε] Corner Radius Average Chip Thickness [HM] Average Chip Thickness [HM]
2030378 XPHT160412MR XPHT333MR   TN7535 2 9.5250 .3750 15.6700 .6169 4.7600 .1875 1.7000 .0669 1.2000 .0468 0.1800 .0071
2029058 XPHT160412MR XPHT333MR   TN7525 2 9.5250 .3750 15.6700 .6169 4.7600 .1875 1.7000 .0669 1.2000 .0468 0.1800 .0071
2964142 XPHT160412MR XPHT333MR   TN6540 2 9.5250 .3750 15.6700 .6169 4.7600 .1875 1.7000 .0669 1.2000 .0468 0.1800 .0071
5427390 XPHT160412MR XPHT333MR   WK15CM 2 9.5250 .3750 15.7720 .6209 4.7600 .1875 1.7000 .0669 1.2000 .0468 0.1800 .0071
2029059 XPHT160412MR XPHT160412MR   TTM08 2 9.525 .3750 15.670 .6169 4.760 .1875 1.700 .0669 1.200 .0468
2029057 XPHT160412MR XPHT333MR   TN5515 2 9.525 .3750 15.670 .6169 4.760 .1875 1.700 .0669 1.200 .0468 0.180 .0071
0°/90° Shoulder Mills • M680

Inserts • XPNT
(10 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice Grade Cutting Edges per Insert [W] Insert Width [W] Insert Width [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [S] Insert Thickness [S] Insert Thickness [BS] Corner Facet Length [BS] Corner Facet Length [Rε] Corner Radius [Rε] Corner Radius Average Chip Thickness [HM] Average Chip Thickness [HM]
2030319 XPNT160412 XPNT333   TN7535 2 9.5250 .3750 15.8750 .6250 4.7900 .1886 1.2000 .0472 1.2000 .0468 0.1600 .0063
2964174 XPNT160412 XPNT333   TN6540 2 9.5250 .3750 15.8750 .6250 4.7900 .1886 1.2000 .0472 1.2000 .0468 0.1600 .0063
5427395 XPNT160412 XPNT333   WK15CM 2 9.5250 .3750 15.8750 .6250 4.7900 .1886 1.2000 .0472 1.2000 .0468 0.1600 .0063
2029075 XPNT160412 XPNT160412   TTM08 2 9.5250 .3750 15.8750 .6250 4.7900 .1886 1.2000 .0472 1.2000 .0469 0.1600 .0063
2029074 XPNT160412 XPNT333   TN2510 2 9.5250 .3750 15.8750 .6250 4.7900 .1886 1.2000 .0472 1.2000 .0468 0.1600 .0063
2030321 XPNT160412 XPNT333   TN25M 2 9.525 .3750 15.875 .6250 4.790 .1886 1.200 .0472 1.200 .0468 0.160 .0063

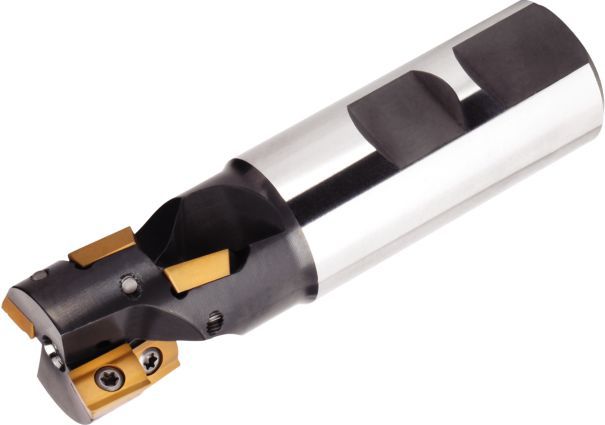

Víceřadé frézy • Řada M300

Frézovací tělesa M300+
(3 Products)
  • Shank - Cylindrical Weldon 2 FlatShank - Cylindrical Weldon 2 Flat
  • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
  • Slotting: Square EndSlotting: Square End
  • Face MillingFace Milling
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number Grade [D1] Effective Cutting Diameter [D1] Effective Cutting Diameter [D] Adapter / Shank / Bore Diameter [D] Adapter / Shank / Bore Diameter [L] Overall Length [L] Overall Length [L2] Head Length [L2] Head Length [AP1MAX] 1st Maximum Cutting Depth [AP1MAX] 1st Maximum Cutting Depth Number of Inserts [Z] Number of Flutes Max RPM Coolant Supply Weight Kilograms
2021407 12393001200 12393001200 W 25.0000 .9840 25.0 .9843 96.0000 3.780 40.0000 1.575 28.0000 1.102 6 2 26100 Y 0.30
2021408 12393001400 12393001400 W 32.0000 1.260 32.0 1.259 110.0000 4.331 50.0000 1.969 37.0000 1.457 12 3 23000 Y 0.55
2021409 12393001600 12393001600 W 40.0000 1.574 32.0 1.259 120.0000 4.724 60.0000 2.362 46.0000 1.811 15 3 20600 Y 0.74

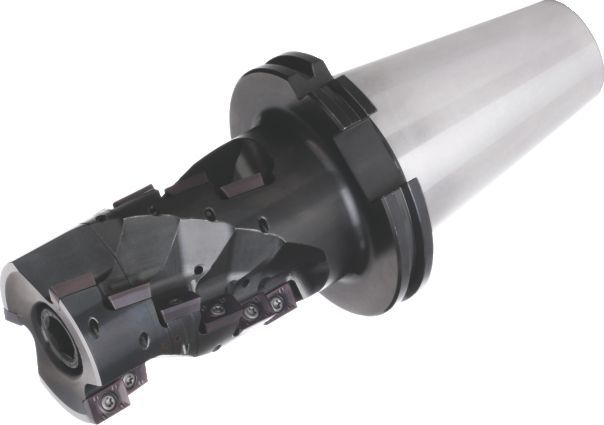

Víceřadé frézy • Řada M300

Frézovací tělesa M300
(3 Products)
  • SK Shank (Rübig)SK Shank (Rübig)
  • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
  • Slotting: Square EndSlotting: Square End
  • Face MillingFace Milling
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number Grade [D1] Effective Cutting Diameter [D1] Effective Cutting Diameter [L] Overall Length [L] Overall Length [L1] Gage Length [L1] Gage Length [L2] Head Length [L2] Head Length [AP1MAX] 1st Maximum Cutting Depth [AP1MAX] 1st Maximum Cutting Depth Number of Inserts [Z] Number of Flutes [CSMS] System Size Machine Side Max RPM Coolant Supply Weight Kilograms
2021419 12393040200 12393040200 W 50.0000 1.968 217.0000 8.543 115.0000 4.527 95.9000 3.775 70.0000 2.755 9 3 DV50 13090 Y 3.70
2021420 12393040400 12393040400 W 63.0000 2.480 232.0000 9.133 130.0000 5.118 110.9000 4.366 84.0000 3.307 12 3 DV50 11690 Y 4.30
2021421 12393040800 12393040800 W 80.0000 3.149 257.0000 10.118 155.0000 6.102 135.9000 5.350 112.0000 4.409 24 4 DV50 10360 Y 6.00

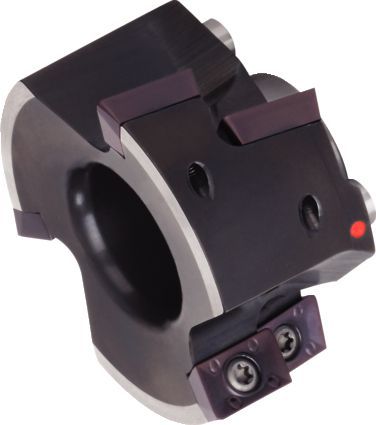

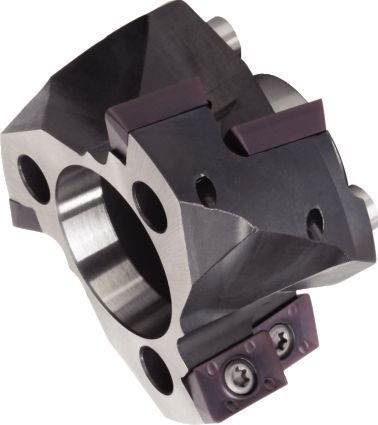

Helical Mills • M300 Series

Accessories
(3 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number Grade [D1] Effective Cutting Diameter [D1] Effective Cutting Diameter [L1] Gage Length [L1] Gage Length [Z] Number of Flutes Number of Inserts Weight Kilograms
2021425 12393050200 12393050200 W 50.0000 1.968 28.2000 1.110 3 6 0.25
2021426 12393050400 12393050400 W 63.0000 2.480 28.2000 1.110 3 6 0.30
2021427 12393050800 12393050800 W 80.0000 3.149 28.2000 1.110 4 8 0.60
Helical Mills • M300 Series

End Cap
(3 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number Grade [D1] Effective Cutting Diameter [D1] Effective Cutting Diameter [L1] Gage Length [L1] Gage Length [Z] Number of Flutes Number of Inserts Weight Kilograms
2021431 12393060200 12393060200 W 50.0000 1.968 28.8000 1.133 3 6 0.30
2021432 12393060400 12393060400 W 63.0000 2.480 28.8000 1.133 3 6 0.35
2021433 12393060800 12393060800 W 80.0000 3.149 28.8000 1.133 4 8 0.65
Víceřadé frézy • Řada M300

Frézovací tělesa M300
(6 Products)
  • Milling - Side and FaceMilling - Side and Face
  • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
  • Slotting: Square EndSlotting: Square End
  • Face MillingFace Milling
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number Grade [D1] Effective Cutting Diameter [D1] Effective Cutting Diameter [D] Adapter / Shank / Bore Diameter [D] Adapter / Shank / Bore Diameter [L] Overall Length [L] Overall Length [AP1MAX] 1st Maximum Cutting Depth [AP1MAX] 1st Maximum Cutting Depth Number of Inserts [Z] Number of Flutes Max RPM Coolant Supply Weight Kilograms
2021434 12393080200 12393080200 W 50.0000 1.969 22.0 .8661 50.0000 1.969 28.0000 1.102 6 3 13090 N 0.40
2021435 12393080400 12393080400 W 63.0000 2.480 27.0 1.063 61.0000 2.402 42.0000 1.654 9 3 11690 N 0.80
2021436 12393080600 12393080600 W 80.0000 3.150 32.0 1.259 70.0000 2.756 56.0000 2.205 16 4 10360 N 1.50
2021437 12393083200 12393083200 W 50.0000 1.969 22.0 .8661 65.0000 2.559 42.0000 1.654 12 4 13090 N 0.50
2021438 12393083400 12393083400 W 63.0000 2.480 27.0 1.063 75.0000 2.953 56.0000 2.205 20 5 11690 N 1.00
2021439 12393083600 12393083600 W 80.0000 3.150 32.0 1.259 85.0000 3.346 70.0000 2.756 30 6 10360 N 2.00
Shoulder Mills • M680 Series

Inserts
(6 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number Grade Cutting Edges per Insert [W] Insert Width [W] Insert Width [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [S] Insert Thickness [S] Insert Thickness [BS] Corner Facet Length [BS] Corner Facet Length [Rε] Corner Radius [Rε] Corner Radius Average Chip Thickness [HM] Average Chip Thickness [HM]
2964137 XPHT160404ALP XPHT160404ALP TN6501 2 9.800 .3858 15.670 .6169 4.660 .1835 1.700 .0669 0.400 .0157
2964135 XPHT160412ALP XPHT160412ALP TN6501 2 9.800 .3858 15.670 .6169 4.660 .1835 1.400 .0551 1.200 .0468
2031794 XPHT160404ALP XPHT331ALP THM-U 2 9.8000 .3858 15.6700 .6169 4.6600 .1835 1.7000 .0669 0.4000 .0157 0.0800 .0031
2031797 XPHT160408ALP XPHT332ALP THM-U 2 9.8000 .3858 15.6700 .6169 4.6600 .1835 1.7000 .0669 0.8000 .0312 0.0800 .0031
2964136 XPHT160408ALP XPHT332ALP TN6501 2 9.8000 .3858 15.6700 .6169 4.6600 .1835 1.7000 .0669 0.8000 .0312 0.0800 .0031
2031799 XPHT160412ALP XPHT333ALP THM-U 2 9.8000 .3858 15.6700 .6169 4.6600 .1835 1.4000 .0551 1.2000 .0468 0.0800 .0031

SUPPORT

Product Support

Email | 888.539.5145

Order Support

Email | 420 800 900 840

Chat With an Expert.
Available 8am-6pm EST

CAREERS

Find a Job

SHOP & SOCIAL

About Us

Read the WIDIA-GTD Story

Read the WIDIA-Hanita Story

STAY IN TOUCH

Susbcribe to our newsletter



Buy WIDIA Products at Amazon

Buy WIDIA Merchandise

© 2019 WIDIA Product Group 2018, Zásady ochrany osobních údajů
