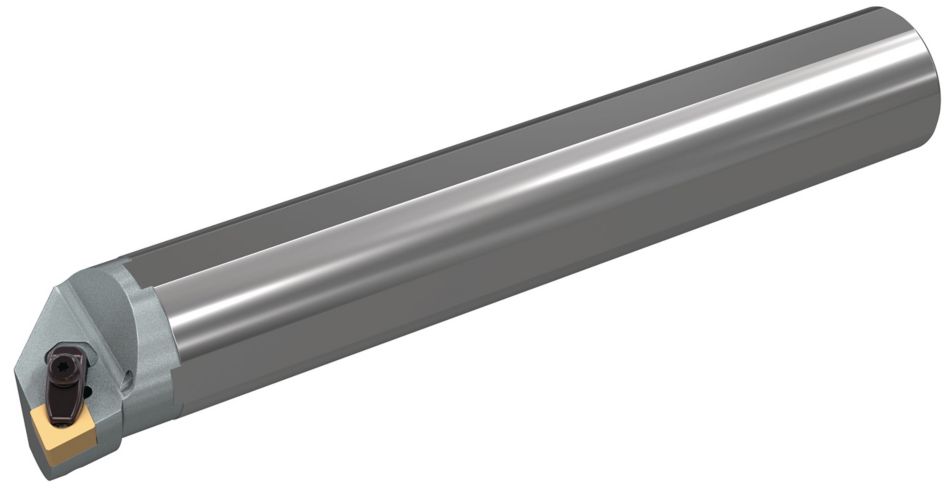

A-DCLN -5°

Steel Shank with Through Coolant

Metrické
Palcové
SAP Material Number 5696305
ISO Catalog Number A40VDCLNR4KC3
ANSI Catalog Number A40VDCLNR4KC3
Grade WG
[D] Adapter / Shank / Bore Diameter 63.5 mm
[D] Adapter / Shank / Bore Diameter 2.5 in
[DM] Minimum Bore Diameter 76.96 mm
[DM] Minimum Bore Diameter 3.03 in
[F] F Dimension 38.89 mm
[F] F Dimension 1.531 in
[L1] Tool Length 406.4 mm
[L1] Tool Length 16 in
[CS] Coolant Supply Size 1/4-18 NPT
Gage Insert CN..432
Zobrazit všechny varianty produktů

Použití

  • I.D. Chamfering & ProfilingI.D. Chamfering & Profiling
  • 5236852368

Materiály obrobků

P Steel
M Stainless Steel
K Cast Iron
N Non-Ferrous
S High-Temp Alloys
H Hardened Materials

Strana stroje

načítání...

Strana obrobku

načítání...

Náhradní díly for A-DCLN -5°

Spare Part
    CARBIDE SHIM ICSN433 (S/T) CARBIDE SHIM ICSN433 (S/T)
    CARBIDE SHIM ICSN433 (S/T)
    Spare Part
      Slotted Spring Pin Slotted Spring Pin
      Slotted Spring Pin
      Spare Part
        SHIM PIN IP15 TORX PLUS THREADED SHIM PIN IP15 TORX PLUS THREADED
        SHIM PIN IP15 TORX PLUS THREADED
        Spare Part
          L-TYPE WRENCH K15IP TORX PLUS L-TYPE WRENCH K15IP TORX PLUS
          L-TYPE WRENCH K15IP TORX PLUS
          Spare Part
            SINGLE SCREW CLAMP HARDWARE CM234R SINGLE SCREW CLAMP HARDWARE CM234R
            SINGLE SCREW CLAMP HARDWARE CM234R
