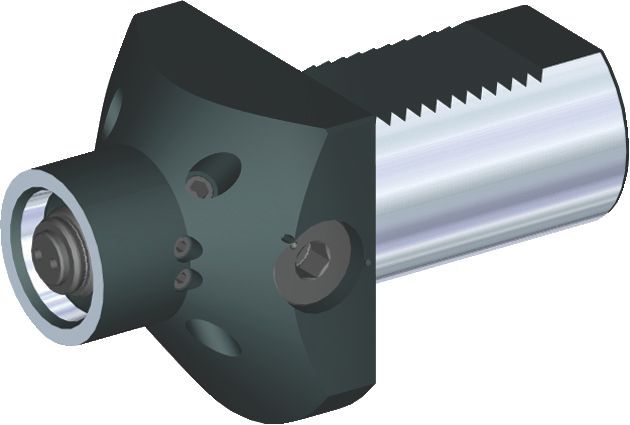

Shank: Cylindrical VDI DIN 69880
Coolant - Through Coolant 100 bar (1500 psi) Maximum
Coolant - Through Coolant 100 bar (1500 psi) MaximumDownloaded file will be available after import in the {{cadTool}} tool library.
| Objednací číslo | 1785241 |
| ISO katalogové ID | KM40CL2ANVDI4060 |
| ASI katalogové ID | KM40CL2ANVDI4060 |
| [CSWS] System Size Workpiece Side | KM40 |
| [CSMS] System Size Machine Side | VDI40 |
| [D1] Adapter / Shank / Bore Diameter | 40 mm |
| [D1] Adapter / Shank / Bore Diameter | 1.5748 in |
| [D] Adapter / Shank / Bore Diameter | 40 mm |
| [D] Adapter / Shank / Bore Diameter | 1.5748 in |
| [D2] Body Diameter 1 Workpiece Side | 83 mm |
| [D2] Body Diameter 1 Workpiece Side | 3.2677 in |
| [L1] Gage Length | 60 mm |
| [L1] Gage Length | 2.3622 in |
| [L2] Usable Length | 23 mm |
| [L2] Usable Length | 0.9055 in |
| [LS] Shank Length | 63 mm |
| [LS] Shank Length | 2.4803 in |
| Actuation Screw ID Drive Size | 8 mm |
| Weight Kilograms | 1.7 |
