Coolant - Through Coolant 100 bar (1500 psi) Maximum
Coolant - Through Coolant 100 bar (1500 psi) Maximum

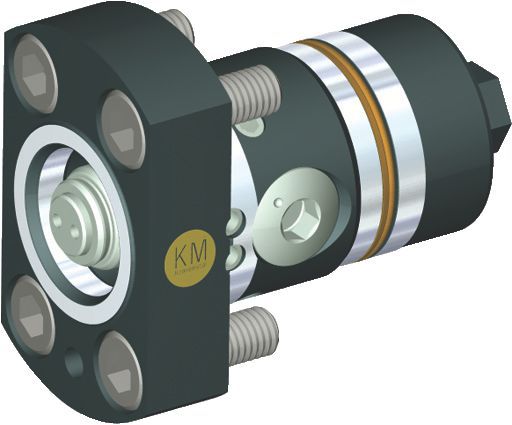

Shank: KM4X™Downloaded file will be available after import in the {{cadTool}} tool library.
| Objednací číslo | 1908331 |
| ISO katalogové ID | KM50CL2NSBC4010B |
| ASI katalogové ID | KM50CL2NSBC4010B |
| [CSWS] System Size Workpiece Side | KM50 |
| [D] Adapter / Shank / Bore Diameter | 58.294 mm |
| [D] Adapter / Shank / Bore Diameter | 2.295 in |
| [D2] Body Diameter 1 Workpiece Side | 96 mm |
| [D2] Body Diameter 1 Workpiece Side | 3.7795 in |
| [B2] Overall Width | 64 mm |
| [B2] Overall Width | 2.5197 in |
| [L1] Gage Length | 22 mm |
| [L1] Gage Length | 0.8661 in |
| [LS] Shank Length | 86.7 mm |
| [LS] Shank Length | 3.4134 in |
| Actuation Screw ID Drive Size | 10 mm |
| Weight Kilograms | 2.01 |
Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) MaximumShank: KM4X™Vytvořit řešení pro výpočet posuvů a rychlosti
Po vytvoření řešení stačí vybrat ikonu Posuvy & Rychlosti a náš systém poskytne doporučení. Informace můžete upravit přidáním zařízení a specifikací nebo provést úpravy pomocí posuvníků.
