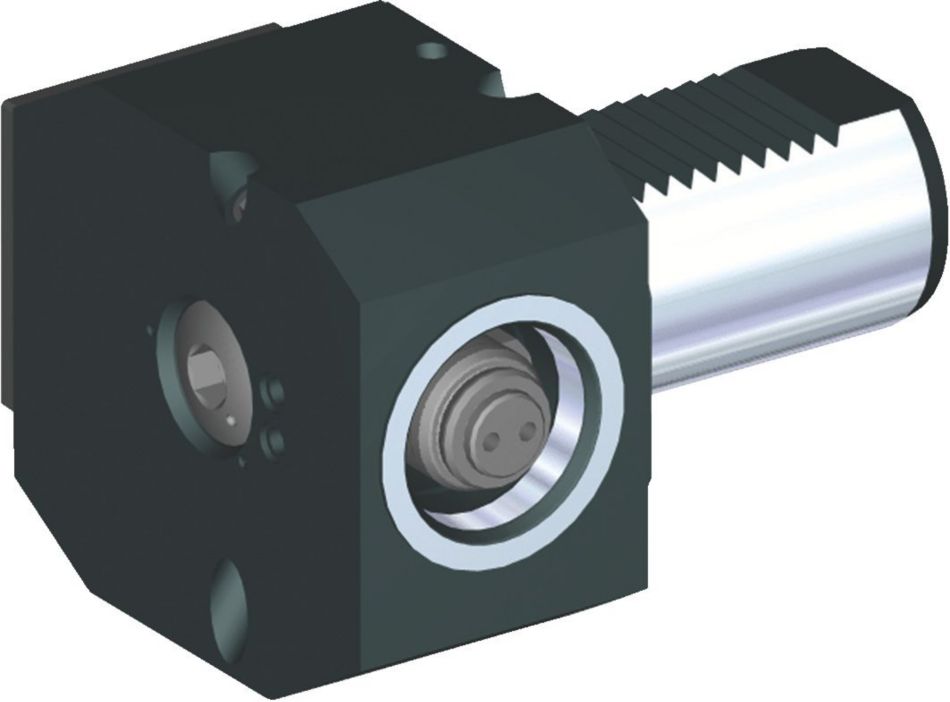

Shank: Cylindrical VDI DIN 69880
Coolant - Through Coolant 100 bar (1500 psi) Maximum
Coolant - Through Coolant 100 bar (1500 psi) MaximumDownloaded file will be available after import in the {{cadTool}} tool library.
| Objednací číslo | 1785240 |
| ISO katalogové ID | KM40CL2RLVDI5040 |
| ASI katalogové ID | KM40CL2RLVDI5040 |
| [CSWS] System Size Workpiece Side | KM40 |
| [CSMS] System Size Machine Side | VDI50 |
| [D] Adapter / Shank / Bore Diameter | 50 mm |
| [D] Adapter / Shank / Bore Diameter | 1.9685 in |
| [F] F Dimension | 40 mm |
| [F] F Dimension | 1.575 in |
| [B2] Overall Width | 87 mm |
| [B2] Overall Width | 3.4252 in |
| [L1] Gage Length | 25 mm |
| [L1] Gage Length | 0.9843 in |
| [LS] Shank Length | 78 mm |
| [LS] Shank Length | 3.0709 in |
| Actuation Screw ID Drive Size | 8 mm |
| Weight Kilograms | 3.23 |
Shank: Cylindrical VDI DIN 69880Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) MaximumVytvořit řešení pro výpočet posuvů a rychlosti
