Balanced-by-Design
Drilling - Through Coolant
Shank - Cylindrical Plain
Shank - Cylindrical Weldon

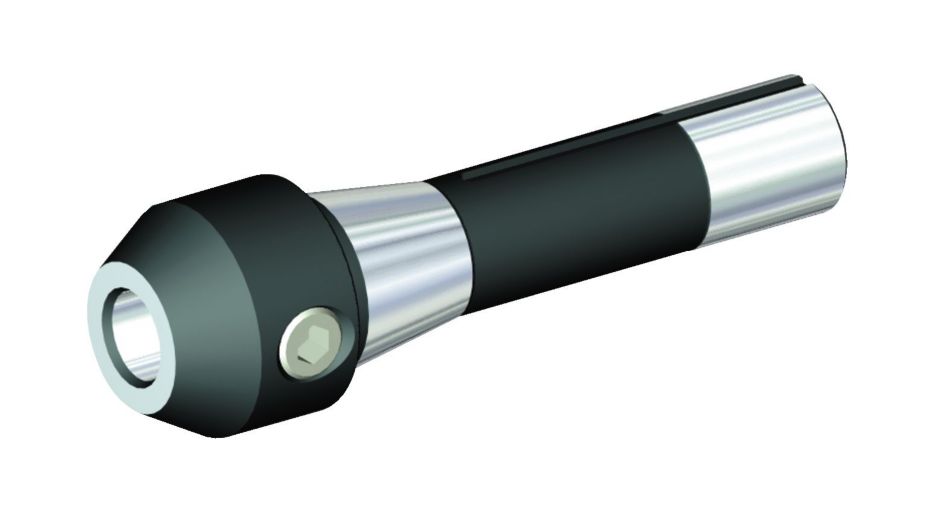

SK Shank: R8Downloaded file will be available after import in the {{cadTool}} tool library.
| Objednací číslo | 1286051 |
| ISO katalogové ID | R8EM062150 |
| ASI katalogové ID | R8EM062150 |
| [D2] Body Diameter 1 Workpiece Side | 41.28 mm |
| [D2] Body Diameter 1 Workpiece Side | 1.625 in |
| [L1] Gage Length | 38.1 mm |
| [L1] Gage Length | 1.5 in |
| [L9] Clamping Length | 53.086 mm |
| [L9] Clamping Hole Length | 2.09 in |
| Clamp Screw ID Drive Size | 1/4 |
| Torque Catalog Foot Pounds | 40 |
| Weight Pounds | 1.29 |
| [D1] Adapter / Shank / Bore Diameter | 15.875 mm |
| [D1] Adapter / Shank / Bore Diameter | 0.625 in |
Balanced-by-Design Drilling - Through CoolantShank - Cylindrical PlainShank - Cylindrical WeldonSK Shank: R8Vytvořit řešení pro výpočet posuvů a rychlosti
Po vytvoření řešení stačí vybrat ikonu Posuvy & Rychlosti a náš systém poskytne doporučení. Informace můžete upravit přidáním zařízení a specifikací nebo provést úpravy pomocí posuvníků.
