Ramping: Blank
Slotting: Square End
Corner Style: Square End
Side Milling/Shoulder Milling: Square End
Helix Angle: 45°
38570Downloaded file will be available after import in the {{cadTool}} tool library.
| Objednací číslo | 1656444 |
| ISO katalogové ID | 410202500.. |
| ANSI katalogové ID | 410202500.. |
| Grade | UNCOATED |
| Adapter Style Machine Side | Straight-Cylindrical |

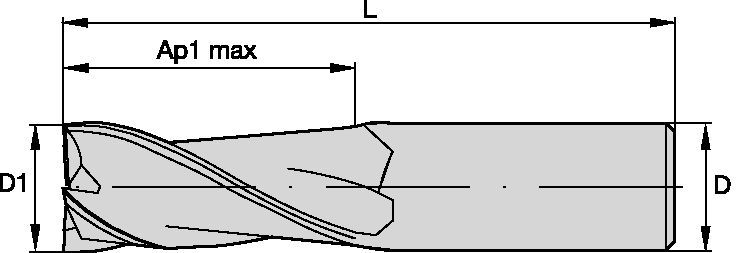

| [D1] Effective Cutting Diameter | 2.5 mm |
| [D1] Effective Cutting Diameter | 0.098 in |
| [D] Adapter / Shank / Bore Diameter | 3 mm |
| [D] Adapter / Shank / Bore Diameter | 0.1181 in |
| [AP1MAX] 1st Maximum Cutting Depth | 9 mm |
| [AP1MAX] 1st Maximum Cutting Depth | 0.354 in |
| [L] Overall Length | 38 mm |
| [L] Overall Length | 1.496 in |
| [Z] Number of Flutes | 2 |
Ramping: BlankSlotting: Square EndCorner Style: Square EndSide Milling/Shoulder Milling: Square EndHelix Angle: 45°38570Vytvořit řešení pro výpočet posuvů a rychlosti
Po vytvoření řešení stačí vybrat ikonu Posuvy & Rychlosti a náš systém poskytne doporučení. Informace můžete upravit přidáním zařízení a specifikací nebo provést úpravy pomocí posuvníků.
