| Objednací číslo | 6296241 |
| ISO katalogové ID | SDEN1204PDEN4WC |
| ASI katalogové ID | SDEN1204PDEN4WC |
| Grade | WBK40U |
| Cutting Edges per Insert | 4 |
| [D] Insert IC Size | 12.7 mm |
| [D] Insert IC Size | 0.5 in |
| [L10] Insert Cutting Edge Length | 12.7 mm |
| [L10] Insert Cutting Edge Length | 0.5 in |
| [S] Insert Thickness | 4.76 mm |
| [S] Insert Thickness | 0.1875 in |
| [BS] Corner Facet Length | 9 mm |
| [BS] Corner Facet Length | 0.354 in |
| [Rε] Corner Radius | 0.8 mm |
| [Rε] Corner Radius | 0.031 in |
Karbidy
WBK40U

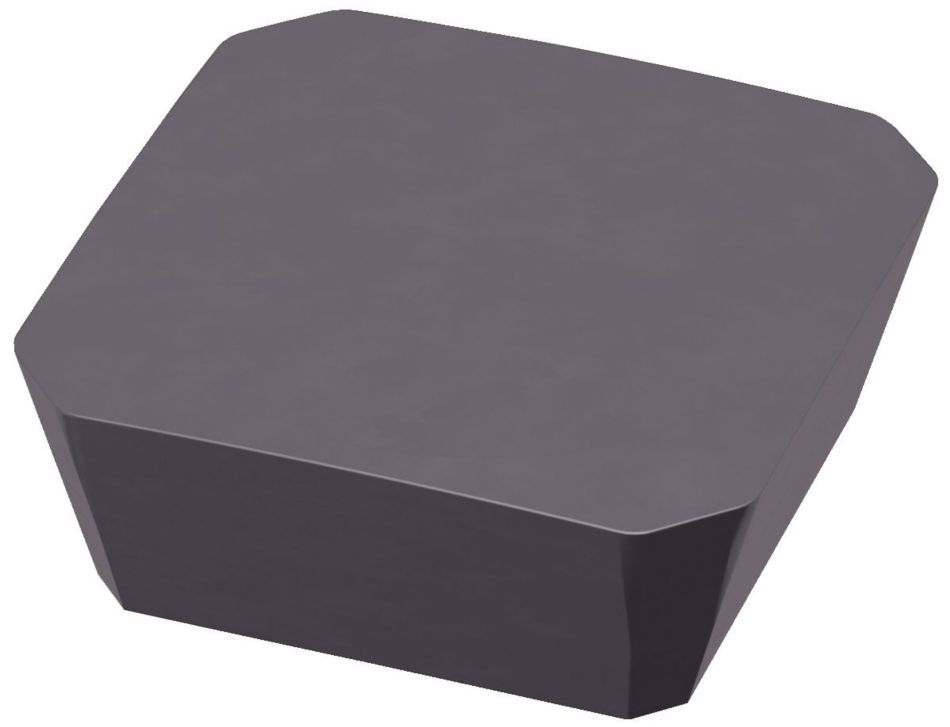

A high-content CBN, solid CBN insert with multiple cutting edges. Applied in roughing to finishing of fully pearlitic gray cast iron, chilled irons, high-chrome alloyed steels, sintered powdered metals, and heavy cuts in hardened steels (>45 HRC). Use for finishing chilled and fully pearlitic cast iron. Solid inserts offer better security and shock resistance than tipped inserts, while also enabling deeper depth-of-cut capability.
Vytvořit řešení pro výpočet posuvů a rychlosti
Po vytvoření řešení stačí vybrat ikonu Posuvy & Rychlosti a náš systém poskytne doporučení. Informace můžete upravit přidáním zařízení a specifikací nebo provést úpravy pomocí posuvníků.
