    M-Clamping Centerline
    M-Clamping Centerline
    M-Clamping Centerline
    M-Clamping Centerline

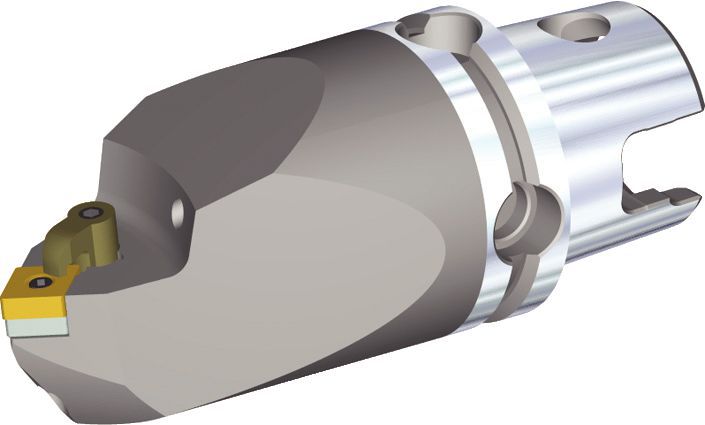

    MCMN 50° • 95° application • Centerline

    M-Clamping Centerline

    Metric
    Inch
    SAP Material Number 3738167
    ISO Catalog Number KM50TSMCMNN12
    ANSI Catalog Number KM50TSMCMNN12
    [L1] Tool Length 50.0000
    [L1] Tool Length 1.969
    [F] F Dimension 0.0000
    [F] F Dimension .0000
    [DM] Minimum Bore Diameter 100.0000
    [DM] Minimum Bore Diameter 3.937
    Gage Insert CN..120408/CN..432
    Weight Kilograms 0.47
    Weight Pounds 1.03
    See all Product Variants

    Workpiece Materials

    P
    M
    K
    N
    S
    H

    Spare Parts for MCMN 50° • 95° application • Centerline

    Spare Part
      CARBIDE SHIM ICSN432   (S/T) SKC
      CARBIDE SHIM ICSN432 (S/T) SKC
      Spare Part
        CLAMPING FINGER  CKM20LP
        CLAMPING FINGER CKM20LP
        Spare Part
          CLAMPING FINGER M6X1  CKM20
          CLAMPING FINGER M6X1 CKM20
          Spare Part
            CLAMP SCR M6 / M6 x 20.574
            CLAMP SCR M6 / M6 x 20.574
            Spare Part
              LOCKING PIN M6.3X1  KLM46
              LOCKING PIN M6.3X1 KLM46
