Cutting Units • Top Thread™ and Top Groove™
Cutting Units • Top Thread™ and Top Groove™
Cutting Units • Top Thread™ and Top Groove™
Cutting Units • Top Thread™ and Top Groove™
Select the files you wish to request
Downloads SDS
Request {{cadTool}} format
{{cadTool}} format is not available

NR 45°

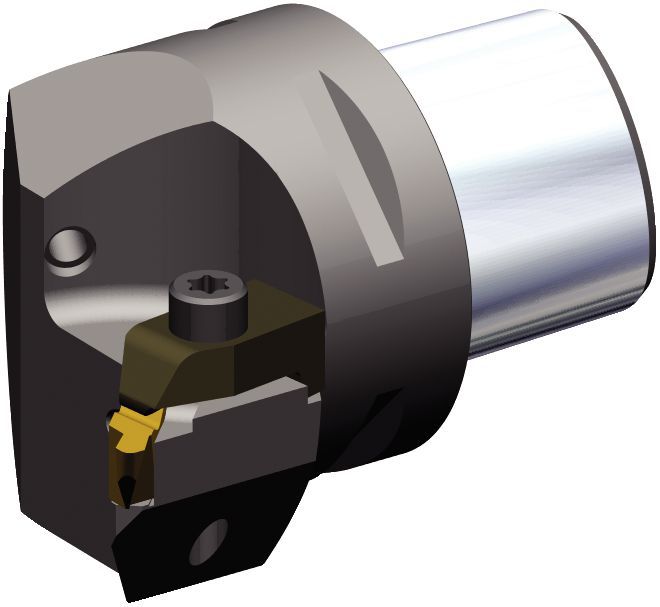

Cutting Units • Top Thread™ and Top Groove™

Metrické
Palcové
SAP Material Number 6338312
ISO Catalog Number PSC50NRR3
ANSI Catalog Number PSC50NRR3
[L1] Tool Length 52 mm
[L1] Tool Length 2.047 in
[F] F Dimension 35 mm
[F] F Dimension 1.378 in
[DM] Minimum Bore Diameter 64 mm
[DM] Minimum Bore Diameter 2.519 in
Gage Insert NU3L
Weight Kilograms 0.69
Zobrazit všechny varianty produktů

Použití

  • Manufacturer’s Specs: ISO 26623Manufacturer’s Specs: ISO 26623
  • Shank - PSCShank - PSC
  • Coolant: Through Coolant 80 bar MaximumCoolant: Through Coolant 80 bar Maximum
  • Coolant: Through Coolant 1200 psi MaximumCoolant: Through Coolant 1200 psi Maximum

Materiály obrobků

P Steel
M Stainless Steel
K Cast Iron
N Non-Ferrous
S High-Temp Alloys
H Hardened Materials

Strana stroje

načítání...

Strana obrobku

načítání...

Náhradní díly for NR 45°

Spare Part
    CLAMPING FINGER CM73 CLAMPING FINGER CM73
    CLAMPING FINGER CM73
