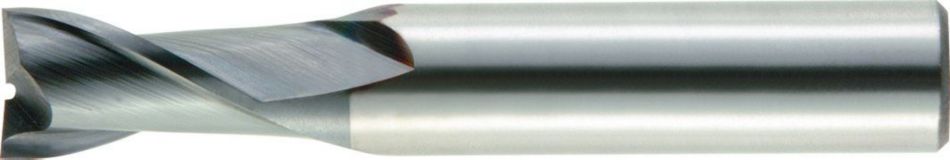

Ramping: Blank
Slotting: Square End
Corner Style: Corner Radius
Corner Style: Square End
Side Milling/Shoulder Milling: Square End
38504
38571Downloaded file will be available after import in the {{cadTool}} tool library.
| Objednací číslo | 2863473 |
| ISO katalogové ID | 4K6316076 |
| ASI katalogové ID | 4K6316076 |
| Grade | UNCOATED |
Ramping: BlankSlotting: Square EndCorner Style: Corner RadiusCorner Style: Square EndSide Milling/Shoulder Milling: Square End3850438571Vytvořit řešení pro výpočet posuvů a rychlosti
Po vytvoření řešení stačí vybrat ikonu Posuvy & Rychlosti a náš systém poskytne doporučení. Informace můžete upravit přidáním zařízení a specifikací nebo provést úpravy pomocí posuvníků.
 |  |  | |||||||||||||||
| Boční frézování (A) | nepovlakované | Doporučený posuv na zub (IPT = palce/zub) při bočním frézování (A). Při drážkování (B) snižte posuv na zub IPT o 20%. | |||||||||||||||
| A | B | Řezná rychlost | Průměr D1 | ||||||||||||||
| frac. | 1/8 | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 | 5/8 | 3/4 | 1 | ||||||||
| Materiálová skupina | ap | ae | ap | Min | Max | dec. | .1250 | .1880 | .2500 | .3130 | .3750 | .5000 | .6250 | .7500 | 1.000 | ||
| N | 1 | Ap1 max | 0.5 x D | 1.0 x D | 1640 | – | 6560 | IPT | .0011 | .0017 | .0023 | .0028 | .0034 | .0045 | .0056 | .0068 | .0090 |
| 2 | Ap1 max | 0.5 x D | 1.0 x D | 1640 | – | 4920 | IPT | .0009 | .0014 | .0018 | .0023 | .0027 | .0036 | .0045 | .0054 | .0072 | |
| 3 | Ap1 max | 0.5 x D | 1.0 x D | 1640 | – | 4920 | IPT | .0008 | .0012 | .0016 | .0020 | .0024 | .0032 | .0039 | .0047 | .0063 | |
| 4 | Ap1 max | 0.5 x D | 1.0 x D | 1310 | – | 2460 | IPT | .0008 | .0012 | .0016 | .0020 | .0024 | .0032 | .0039 | .0047 | .0063 | |
| 5 | Ap1 max | 0.5 x D | 1.0 x D | 820 | – | 3280 | IPT | .0010 | .0015 | .0020 | .0025 | .0030 | .0041 | .0051 | .0061 | .0081 | |
| Materiálová skupina | | | | ||||||||||||||
| Boční frézování (A) | nepovlakované | Doporučený posuv na zub (IPT = palce/zub) při bočním frézování (A). Při drážkování (B) snižte posuv na zub IPT o 20%. | |||||||||||||||
| Řezná rychlost | Průměr D1 | ||||||||||||||||
| frac. | 1/8 | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 | 5/8 | 3/4 | 1 | ||||||||
| ap | ae | ap | Min | Max | dec. | .1250 | .1880 | .2500 | .3130 | .3750 | .5000 | .6250 | .7500 | 1.000 | |||
| N | 1 | 1 x D | 0.5 x D | 1.0 x D | 1600 | – | 6500 | Fz | .0011 | .0017 | .0023 | .0028 | .0034 | .0055 | .0065 | .0080 | .0095 |
| 2 | 1 x D | 0.5 x D | 1.0 x D | 1600 | – | 4500 | Fz | .0010 | .0015 | .0020 | .0025 | .0030 | .0050 | .0060 | .0070 | .0090 | |
| – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
| – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |
