Balanced-by-Design
Milling - Through Coolant
Milling - Side and Face
Coolant - Through Coolant 100 bar (1500 psi) Maximum
Coolant - Through Coolant 100 bar (1500 psi) Maximum

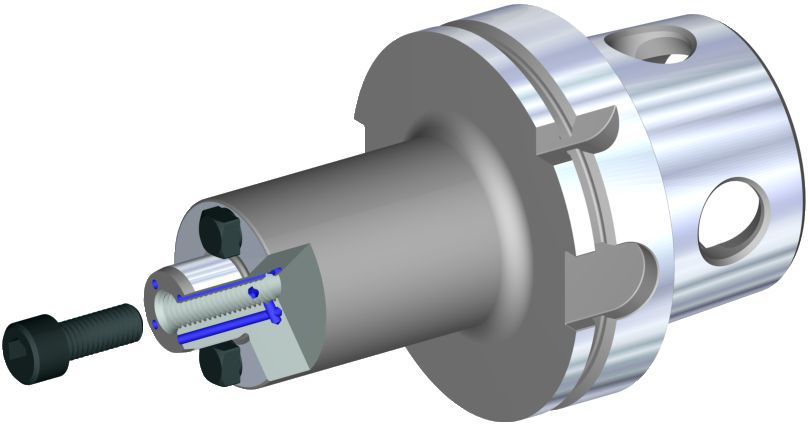

Shank: KM4X™Downloaded file will be available after import in the {{cadTool}} tool library.
| Objednací číslo | 4160335 |
| ISO katalogové ID | KM4X100SMC22050M |
| ASI katalogové ID | KM4X100SMC22050M |
| [D1] Adapter / Shank / Bore Diameter | 22 mm |
| [D1] Adapter / Shank / Bore Diameter | 0.87 in |
| [D2] Body Diameter 1 Workpiece Side | 49 mm |
| [D2] Body Diameter 1 Workpiece Side | 1.93 in |
| [L1] Gage Length | 50 mm |
| [L1] Gage Length | 1.969 in |
| Cutter Retention Screw ID Drive Size | 8 mm |
| Weight Kilograms | 2.64 |
