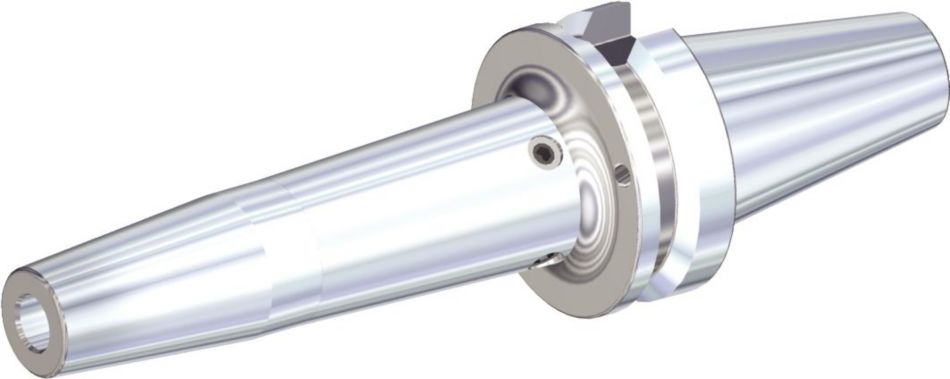

Axial Adjustment - End
Accuracy - 3μm or Less
Drilling - Through Coolant
Shank - Cylindrical Plain ≤h6
Shank - Cylindrical Weldon® ≤h6
Shank - Cylindrical Whistle Notch ≤h6
Balance: G 6.3 @ 15,000
Shank - SK BT JIS B 6339Downloaded file will be available after import in the {{cadTool}} tool library.
| Objednací číslo | 3615367 |
| ISO katalogové ID | BT40BHPVTT12160M |
| ASI katalogové ID | BT40BHPVTT12160M |
| [D1] Adapter / Shank / Bore Diameter | 12 mm |
| [D1] Adapter / Shank / Bore Diameter | 0.4724 in |
| [D2] Body Diameter 1 Workpiece Side | 24 mm |
| [D2] Body Diameter 1 Workpiece Side | 0.945 in |
| [D21] Body Diameter 2 Workpiece Side | 31.9 mm |
| [D21] Body Diameter 2 Workpiece Side | 1.256 in |
| Max Diameter Taper Angle [D22] | 36.79 mm |
| Max Diameter Taper Angle [D22] | 1.448 in |
| [L1] Gage Length | 160 mm |
| [L1] Gage Length | 6.299 in |
| [L2] Usable Length | 63 mm |
| [L2] Usable Length | 2.48 in |
| [L21] Usable Length | 133 mm |
| [L21] Usable Length | 5.236 in |
| [L9] Clamping Length | 36 mm |
| [L9] Clamping Hole Length | 1.417 in |
| [V] Adjustment Range | 10 mm |
| [V] Adjustment Range | 0.3937 in |
| Stop Screw ID Drive Size | 5 mm |
| Weight Kilograms | 1.69 |
Axial Adjustment - EndAccuracy - 3μm or LessDrilling - Through CoolantShank - Cylindrical Plain ≤h6Shank - Cylindrical Weldon® ≤h6Shank - Cylindrical Whistle Notch ≤h6Balance: G 6.3 @ 15,000Shank - SK BT JIS B 6339Vytvořit řešení pro výpočet posuvů a rychlosti
Po vytvoření řešení stačí vybrat ikonu Posuvy & Rychlosti a náš systém poskytne doporučení. Informace můžete upravit přidáním zařízení a specifikací nebo provést úpravy pomocí posuvníků.
