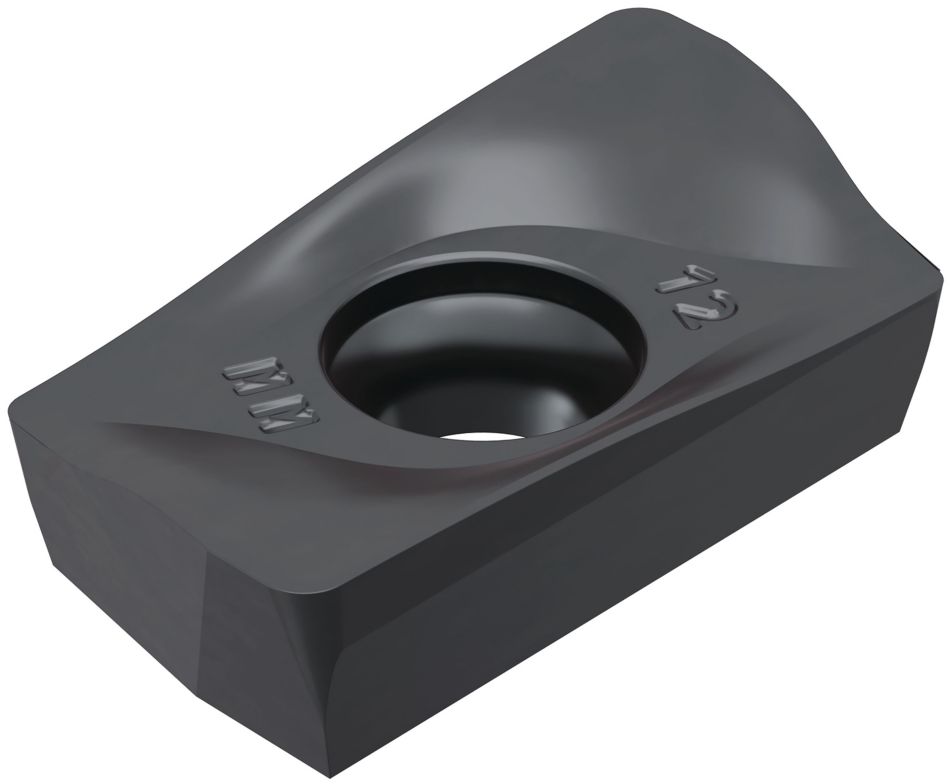

| Objednací číslo | 6852415 |
| ISO katalogové ID | XPHT220612PDSRMM |
| ASI katalogové ID | XPHT220612PDSRMM |
| Grade | WP35CM |
| Cutting Edges per Insert | 2 |
| [LI] Insert Length | 22.55 mm |
| [LI] Insert Length | 0.8876 in |
| [S] Insert Thickness | 6.35 mm |
| [S] Insert Thickness | 0.25 in |
| [W] Insert Width | 12.7 mm |
| [W] Insert Width | 0.5 in |
| [Rε] Corner Radius | 1.2 mm |
| [Rε] Corner Radius | 0.047 in |
| Average Chip Thickness [HM] | 0.228 mm |
| Average Chip Thickness [HM] | 0.009 in |
