KM40TS™ Shank Tools

Boring Bar Adapters
(12 Products)
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
  • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
  • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
  • Shank - Cylindrical with FlatShank - Cylindrical with Flat
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number [D1] Adapter / Shank / Bore Diameter [D1] Adapter / Shank / Bore Diameter [D2] Body Diameter 1 Workpiece Side [D2] Body Diameter 1 Workpiece Side [L1] Gage Length [L1] Gage Length [L9] Clamping Length [L9] Clamping Hole Length Clamp Screw ID Drive Size Torque Catalog Newton Meters Weight Kilograms
3950818 KM40TSBA06050M KM40TSBA06050M 6.0000 .2362 40.0000 1.575 50.0000 1.969 36.0000 1.417 2.5 mm 3 0.50
3950813 KM40TSBA06236 KM40TSBA06236 9.5250 .3750 40.0000 1.575 60.0000 2.362 48.0000 1.890 1/8 6 0.58
3950819 KM40TSBA08050M KM40TSBA08050M 8.0000 .3150 40.0000 1.575 50.0000 1.969 36.0000 1.417 2.5 mm 3 0.50
3950814 KM40TSBA08256 KM40TSBA08256 12.7000 .5000 40.0000 1.575 65.0000 2.559 52.0000 2.047 5/32 13 0.60
3950820 KM40TSBA10060M KM40TSBA10060M 10.0000 .3937 40.0000 1.575 60.0000 2.362 48.0000 1.890 4 mm 12 0.58
3950815 KM40TSBA10276 KM40TSBA10276 15.8750 .6250 40.0000 1.575 70.0000 2.756 55.0000 2.165 3/16 20 0.61
KM40TS™ Shank Tools

Boring Bar Adapters
(4 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number [D1] Adapter / Shank / Bore Diameter [D1] Adapter / Shank / Bore Diameter [D2] Body Diameter 1 Workpiece Side [D2] Body Diameter 1 Workpiece Side [L1] Gage Length [L1] Gage Length [L9] Clamping Length [L9] Clamping Hole Length Clamp Screw ID Drive Size Torque Catalog Newton Meters Weight Kilograms
3950156 KM40TSBAI20315 KM40TSBAI20315 31.7500 1.250 50.0000 1.969 80.0000 3.150 58.0000 2.283 3/16 20 0.81
3950157 KM40TSBAI24354 KM40TSBAI24354 38.1000 1.500 58.0000 2.283 90.0000 3.543 68.0000 2.677 3/16 20 1.10
3950158 KM40TSBAI32080M KM40TSBAI32080M 32.0000 1.260 50.0000 1.969 80.0000 3.150 58.0000 2.283 5 mm 25 0.81
3950159 KM40TSBAI40090M KM40TSBAI40090M 40.0000 1.575 58.0000 2.283 90.0000 3.543 68.0000 2.677 5 mm 25 1.04
KM40TS™ Shank Tools

Blanks
(3 Products)
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number [D2] Body Diameter 1 Workpiece Side [D2] Body Diameter 1 Workpiece Side [L1] Gage Length [L1] Gage Length Hardness Range Weight Kilograms Weight Pounds
3950194 KM40TSBN63052M KM40TSBN63052M 63.0000 2.480 52.0000 2.047 32-38 RC 1.11 2.45
3950193 KM40TSBN63125M KM40TSBN63125M 63.0000 2.480 125.0000 4.921 32-38 RC 2.89 6.38
3950195 KM40TSBN90052M KM40TSBN90052M 90.0000 3.543 52.0000 2.047 32-38 RC 2.00 4.42
KM40TS™ Shank Tools

Combi Shell Mill Adapters
(2 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number [D1] Adapter / Shank / Bore Diameter [D1] Adapter / Shank / Bore Diameter [D2] Body Diameter 1 Workpiece Side [D2] Body Diameter 1 Workpiece Side [L1] Gage Length [L1] Gage Length [L13] Pilot Length [L13] Pilot Length Cutter Retention Screw ID Drive Size Weight Kilograms
3951833 KM40TSCS16036M KM40TSCS16036M 16.0000 .6300 32.0000 1.260 36.0000 1.417 27.0000 1.063 6 mm 0.33
3951834 KM40TSCS22038M KM40TSCS22038M 22.0000 .8700 40.0000 1.575 38.0000 1.496 31.0000 1.220 8 mm 0.47
KM40TS™ Shank Tools

EM End Mill Adapters
(10 Products)
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
  • Shank - Cylindrical Weldon DIN 6535/1835Shank - Cylindrical Weldon DIN 6535/1835
  • Shank - Cylindrical  WeldonShank - Cylindrical Weldon
  • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
  • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number [D1] Adapter / Shank / Bore Diameter [D1] Adapter / Shank / Bore Diameter [D2] Body Diameter 1 Workpiece Side [D2] Body Diameter 1 Workpiece Side [L1] Gage Length [L1] Gage Length [L9] Clamping Length [L9] Clamping Hole Length Clamp Screw ID Drive Size Torque Catalog Newton Meters Weight Kilograms
3950139 KM40TSEM038197 KM40TSEM038197 9.5250 .3750 25.4000 1.000 50.0000 1.968 44.0500 1.734 3/16 20 0.26
3950140 KM40TSEM050216 KM40TSEM050216 12.7000 .5000 34.9200 1.375 55.0000 2.165 50.1500 1.974 7/32 27 0.38
3950196 KM40TSEM06045M KM40TSEM06045M 6.0000 .2360 24.5000 .9650 45.0000 1.772 40.0000 1.575 3 mm 7 0.25
3950141 KM40TSEM062236 KM40TSEM062236 15.8750 .6250 41.2800 1.625 60.0000 2.362 53.2000 2.094 1/4 54 0.52
3950142 KM40TSEM075256 KM40TSEM075256 19.0500 .7500 44.4500 1.750 65.0000 2.559 56.5000 2.224 5/16 95 0.61
3950197 KM40TSEM08045M KM40TSEM08045M 8.0000 .3150 27.5000 1.083 45.0000 1.772 40.0000 1.575 4 mm 15 0.28
Kleštinová sklíčidla ER

ER • KM40TS
(3 Products)
  • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
  • Shank - Cylindrical  PlainShank - Cylindrical Plain
  • Axial Adjustment - EndAxial Adjustment - End
  • Shank - Cylindrical with SquareShank - Cylindrical with Square
  • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
  • Shank: HSK DIN 69893 Form AShank: HSK DIN 69893 Form A
  • Drilling - Through CoolantDrilling - Through Coolant
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number [CST] Catalog Collet Series [D11] Lock Nut Diameter [D11] Lock Nut Diameter [L1] Gage Length [L1] Gage Length [L9] Clamping Length [L9] Clamping Hole Length Weight Kilograms Counter Bore Collet Torque Nm Straight Collet Torque Nm
3950246 KM40TSER16038M KM40TSER16038M ER16 32.0000 1.259 38.0000 1.496 32.8000 1.291 0.22 40.000 56
3950247 KM40TSER25045M KM40TSER25045M ER25 42.0000 1.653 45.0000 1.771 41.2000 1.622 0.30 104.000 104
3950248 KM40TSER32060M KM40TSER32060M ER32 50.0000 1.968 60.0000 2.362 47.3000 1.862 0.47 136.000 136
KM40TS™ Shank Tools

Gage Bars • Blanks
(1 Products)
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number [D2] Body Diameter 1 Workpiece Side [D2] Body Diameter 1 Workpiece Side [L1] Gage Length [L1] Gage Length Gage Test Length [L13] Gage Test Length [L13] Weight Kilograms Weight Pounds
3959981 KM40TSGB40080M KM40TSGB40080M 40.0000 1.574 80.0000 3.149 68.0000 2.677 0.81 1.79
Stopkové nástroje KM40TS™

Standardní řada hydraulických upínačů
(5 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number [D1] Adapter / Shank / Bore Diameter [D2] Body Diameter 1 Workpiece Side [L1] Gage Length [L2] Usable Length [L9] Clamping Length [V] Adjustment Range Actuation Screw ID Drive Size Stop Screw ID Drive Size Weight Kilograms
3960497 KM40TSHC050300 KM40TSHC050300 12.7000 31.6000 76.2000 44.5000 36.0000 10.0000 5 mm 2.5 mm 0.53
3960498 KM40TSHC06065M KM40TSHC06065M 6.0000 25.7000 65.0000 34.0000 27.0000 10.0000 5 mm 2.5 mm 0.43
3960499 KM40TSHC08065M KM40TSHC08065M 8.0000 27.7000 65.0000 34.0000 27.0000 10.0000 5 mm 2.5 mm 0.44
3960500 KM40TSHC10070M KM40TSHC10070M 10.0000 29.7000 70.0000 38.0000 31.0000 10.0000 5 mm 2.5 mm 0.49
3960501 KM40TSHC12075M KM40TSHC12075M 12.0000 31.6000 75.0000 40.5000 36.0000 10.0000 5 mm 2.5 mm 0.53
KM40TS™ Shank Tools

Boring Bar Adapters
(1 Products)
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
  • Shank - Cylindrical with FlatShank - Cylindrical with Flat
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
  • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
  • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number [D2] Body Diameter 1 Workpiece Side [D2] Body Diameter 1 Workpiece Side [L1] Gage Length [L1] Gage Length [L9] Clamping Length [L9] Clamping Hole Length Clamp Screw ID Drive Size Torque Catalog Foot Pounds Weight Pounds [D1] Adapter / Shank / Bore Diameter [D1] Adapter / Shank / Bore Diameter
3964068 KM40TSHDB6157 KM40TSHDB6157 32.0000 1.259 40.0000 1.574 27.0000 1.063 1/8 60 0.57 19.0500 .7500
KM40TS™ Shank Tools

Morse Taper
(2 Products)
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number [CSWS] System Size Workpiece Side [D2] Body Diameter 1 Workpiece Side [D2] Body Diameter 1 Workpiece Side [L1] Gage Length [L1] Gage Length Weight Kilograms Weight Pounds
3950810 KM40TSMT2105M KM40TSMT2105M 2 32.0000 1.260 105.0000 4.133 0.59 1.30
3950811 KM40TSMT3125M KM40TSMT3125M 3 40.0000 1.575 125.0000 4.921 0.95 2.09
KM40TS™ Shank Tools

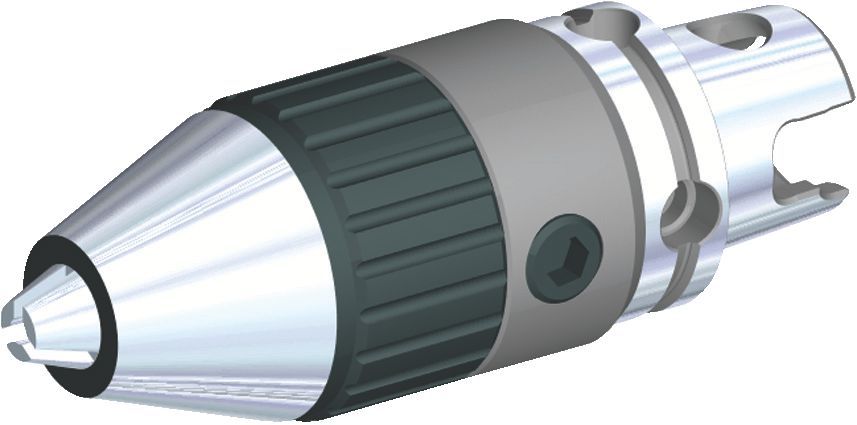

Drill Chucks
(1 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number [D1] Adapter / Shank / Bore Diameter [D1] Adapter / Shank / Bore Diameter [D1MAX] Maximum Adaptor/Bore Diameter [D1MAX] Maximum Adaptor/Bore Diameter [D2] Body Diameter 1 Workpiece Side [D2] Body Diameter 1 Workpiece Side [L1S] Secondary Tool Length [L1S] Secondary Tool Length
4053778 KM40TSRDC13092M KM40TSRDC13092M 1.0000 .0390 13.0000 .5120 43.0000 1.692 90.0000 3.543
KM40TS™ Shank Tools

KM™ Reducers • Gage Bars • Blanks
(1 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number [CSWS] System Size Workpiece Side [D2] Body Diameter 1 Workpiece Side [D2] Body Diameter 1 Workpiece Side [L1] Gage Length [L1] Gage Length [L2] Usable Length [L2] Usable Length Actuation Screw ID Drive Size Torque Catalog Newton Meters Torque Catalog Foot Pounds Weight Kilograms Weight Pounds
3950178 KM40TSS32070M KM40TSS32070M KM32 32.0000 1.259 70.0000 2.756 58.0000 2.283 5 mm 8-11 6-8 0.46 1.01
KM40TS™ Shank Tools

KM™ Extensions • Reducers
(2 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number [CSWS] System Size Workpiece Side [D2] Body Diameter 1 Workpiece Side [D2] Body Diameter 1 Workpiece Side [L1] Gage Length [L1] Gage Length Actuation Screw ID Drive Size Torque Catalog Newton Meters Torque Catalog Foot Pounds Weight Kilograms Weight Pounds
3950179 KM40TSS40060M KM40TSS40060M KM40 40.0000 1.574 60.0000 2.362 6 mm 12-16 9-12 0.52 1.15
3950180 KM40TSS40080M KM40TSS40080M KM40 40.0000 1.574 80.0000 3.150 6 mm 12-16 9-12 0.71 1.57
KM40TS™ Shank Tools

SMC Shell Mill Adapters with Through Coolant
(5 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number [D2] Body Diameter 1 Workpiece Side [D2] Body Diameter 1 Workpiece Side [L1] Gage Length [L1] Gage Length Cutter Retention Screw ID Drive Size Weight Pounds [D1] Adapter / Shank / Bore Diameter [D1] Adapter / Shank / Bore Diameter
3950257 KM40TSSM2C075102 KM40TSSM2C075102 37.0000 1.457 26.0000 1.024 1/4 0.71 19.0500 .7500
3950259 KM40TSSM2C100126 KM40TSSM2C100126 55.6000 2.189 32.0000 1.260 5/16 1.33 25.4000 1.000
3950256 KM40TSSMC050102 KM40TSSMC050102 36.5000 1.437 26.0000 1.024 3/16 0.63 12.7000 .5000
3950258 KM40TSSMC075102 KM40TSSMC075102 44.5000 1.752 26.0000 1.024 1/4 0.82 19.0500 .7500
3950260 KM40TSSMC100126 KM40TSSMC100126 69.9000 2.752 32.0000 1.260 5/16 1.64 25.4000 1.000
KM40TS™ Shank Tools

SMC Shell Mill Adapters with Through Coolant
(3 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number [D1] Adapter / Shank / Bore Diameter [D1] Adapter / Shank / Bore Diameter [D2] Body Diameter 1 Workpiece Side [D2] Body Diameter 1 Workpiece Side [L1] Gage Length [L1] Gage Length Cutter Retention Screw ID Drive Size Weight Kilograms
3950261 KM40TSSMC16026M KM40TSSMC16026M 16.0000 .6300 44.0000 1.732 26.0000 1.024 6 mm 0.34
3950262 KM40TSSMC22028M KM40TSSMC22028M 22.0000 .8661 49.0000 1.929 28.0000 1.102 8 mm 0.44
3950263 KM40TSSMC27032M KM40TSSMC27032M 27.0000 1.063 60.0000 2.362 32.0000 1.260 10 mm 0.68
Stopkové nástroje KM40TS™

Upínače závitníků
(2 Products)
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
  • Shank - Cylindrical with SquareShank - Cylindrical with Square
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number [TQCS] Tap Quick Change Size [D1] Adapter / Shank / Bore Diameter [D1] Adapter / Shank / Bore Diameter [D2] Body Diameter 1 Workpiece Side [D2] Body Diameter 1 Workpiece Side [L1] Gage Length [L1] Gage Length Weight Kilograms Weight Pounds
3964071 KM40TSST1045M KM40TSST1045M 1 19.0270 .7491 34.9250 1.375 45.0500 1.773 0.30 0.65
3964072 KM40TSST2070M KM40TSST2070M 2 31.0270 1.221 50.8000 2.000 70.0500 2.757 0.71 1.56
