C Style Inserts

Select Filters
FiltersX
Filters
View filters in
Metric
Inch
keyFilters
Workpiece Material
  • P Steel (572)
    • P0
      Low-Carbon Steels, Long Chipping C < .25%; <125 HB; <530 N/mm^2 UTS
      (572)
    • P1
      Low-Carbon Steels, Short Chipping C < .25%; <125 HB; <530 N/mm^2 UTS
      (572)
    • P2
      Medium and High Carbon Steels C < .25%; <220 HB; <25 HRC; >530 N/mm^2 UTS
      (572)
    • P3
      Alloy Steels & Tool Steels C > .25%; <330 HB; <35 HRC; 600-850 N/mm^2 UTS
      (572)
    • P4
      Alloy Steels & Tool Steels C > .25%; 350-420 HB; 35-43 HRC; 850-1400 N/mm^2 UTS
      (572)
    • P5
      Ferritic, Martensitic, and PH Stainless Steels <330 HB; <35 HRC; 600-900 N/mm^2 UTS
      (572)
    • P6
      High Strength Ferritic, Martensitic, and PH Stainless Steels 350-450 HB; 35-43 HRC; 900-2400 N/mm^2 UTS
      (572)
  • M Stainless Steel (257)
    • M1
      Austenitic Stainless Steel 130-200 HB; <600 N/mm^2 UTS
      (257)
    • M2
      High Strength Austenitic Stainless and Cast Stainless Steels 150-230 HB; <25 HRC; >600 N/mm^2 UTS
      (257)
    • M3
      Duplex Stainless Steel 135-275 HB; <30 HRC; 500-1200 N/mm^2 UTS
      (257)
  • K Cast Iron (317)
    • K1
      Gray Cast Iron 120-290 HB; <32 HRC; 125-500 N/mm^2 UTS
      (317)
    • K2
      Low and Medium Strength CGI and Ductile Irons 130-260 HB; <28 HRC; <600 N/mm^2 UTS
      (315)
    • K3
      High Strength Ductile and Austempered Ductile Iron 180-350 HB; <43 HRC; >600 N/mm^2 UTS
      (310)
  • N Non-Ferrous Materials (45)
    • N1
      Wrought Aluminum
      (42)
    • N2
      Low-Silicon Aluminum Alloys and Magnesium Alloys Si <12.2%
      (42)
    • N4
      Copper, Brass, Zinc-based on machinability index range of 70-100
      (45)
  • S High-Temp Alloys (286)
    • S1
      Iron-Based, Heat-Resistant Alloys 160-260 HB; 25-48 HRC; 500-1200 N/mm^2 UTS
      (286)
    • S2
      Cobalt-Based, Heat-Resistant Alloys 250-450 HB; 25-48 HRC; 1000-1450 N/mm^2 UTS
      (286)
    • S3
      Nickel-Based, Heat Resistant Alloys 160-450 HB; <48 HRC; 600-1700 N/mm^2 UTS
      (286)
    • S4
      Titanium and Titanium Alloys 300-400 HB; 33-43 HRC; 900-1600 N/mm^2 UTS
      (141)
  • H Hardened Materials (1)
    • H1
      Hardened Materials 44-48 HRC
      (1)
    • H2
      Hardened Materials 48-55 HRC
      (1)
    • H3
      Hardened Materials 56-60 HRC
      (1)
    • H4
      Hardened Materials >60 HRC
      (1)
firstChoiceCountry
.product.facets.selectFirstChoice
  • DE (241)
  • IN (96)
  • US (79)
Applications
  • ID Thread Turning (708)
Cutting Condition Material
  • P-All (297)
  • M-All (181)
  • K-All (174)
  • S-All (123)
  • N-All (3)
Cutting Condition
  • Smooth Cut (420)
  • Varying Depth of Cut (360)
  • Lightly Interrupted Cut (341)
  • Heavily Interrupted Cut (211)
Cutting Edges Per Insert
to
cornerConfiguration
Corner Radius
to
Corner Radius
to
application
Drilling Condition
  • Smooth Cut (420)
  • Varying Depth of Cut (360)
  • Lightly Interrupted Cut (341)
  • Heavily Interrupted Cut (211)
Drilling Condition Material
  • P-All (297)
  • M-All (181)
  • K-All (174)
  • S-All (123)
  • N-All (3)
Grade Of Cutting Tool
  • WM25CT (81)
  • WP15CT (72)
  • WP25CT (72)
  • WK20CT (65)
  • WS10PT (48)
  • WM15CT (38)
  • WP35CT (32)
  • THM (28)
  • WK05CT (28)
  • WS25PT (28)
  • WM35CT (26)
  • TN2000 (21)
  • HK1500 (14)
  • TN4000 (14)
  • WU10HT (14)
  • WK15CT (13)
  • PB250 (11)
  • THM-X (10)
  • PB100 (8)
  • PD100 (8)
  • TN20K (8)
  • TN6010 (8)
  • TTR (8)
  • TTS (7)
  • TN6025 (6)
  • CW5025 (5)
  • PB170 (5)
  • TN10U (5)
  • TTI15 (5)
  • PB300 (4)
  • PD50 (3)
  • THMF-X (3)
  • TN15U (3)
  • W00342 (3)
  • TTX (2)
  • WBK40U (2)
  • WP20TT (2)
  • HK35 (1)
  • KCU25 (1)
  • SPN3W1 (1)
  • TTM (1)
  • TTR-X (1)
  • WBH25U (1)
  • WU20HT (1)
Wiper Insert
  • N (689)
  • Y (23)
frontEnd
Insert Shape
  • C-DIAMOND/RHOMBIC 80 (718)
insertGeometry
Shape
  • C-DIAMOND/RHOMBIC 80 (718)
Insert IC Size
to
Insert IC Size
to
Cutting Edge Length
to
Cutting Edge Length
to
Chip Breaker CBMD
  • UR (78)
  • FP (70)
  • RH (50)
  • MU (47)
  • MR (44)
  • MP (33)
  • MS (26)
  • 65 (25)
  • ML (14)
  • UM (13)
  • 5 (12)
  • MW (12)
  • FF (11)
  • FW (11)
  • 22 (10)
  • FS (9)
  • UF (9)
  • 8 (3)
  • A32 (3)
  • SR (3)
  • 41 (2)
Cutting Tool Material
  • H W (650)
  • C N (13)
  • B H (9)
  • B L (8)
  • D P (7)
  • H T (7)
Insert Thickness
to
Insert Thickness
to
Tolerance Class
  • M (691)
  • G (24)
other
Grade
  • WM25CT (81)
  • WP15CT (72)
  • WP25CT (72)
  • WK20CT (65)
  • WS10PT (48)
  • WM15CT (38)
  • WP35CT (32)
  • THM (28)
  • WK05CT (28)
  • WS25PT (28)
  • WM35CT (26)
  • TN2000 (21)
  • HK1500 (14)
  • TN4000 (14)
  • WU10HT (14)
  • WK15CT (13)
  • PB250 (11)
  • THM-X (10)
  • PB100 (8)
  • PD100 (8)
  • TN20K (8)
  • TN6010 (8)
  • TTR (8)
  • TTS (7)
  • TN6025 (6)
  • CW5025 (5)
  • PB170 (5)
  • TN10U (5)
  • TTI15 (5)
  • PB300 (4)
  • PD50 (3)
  • THMF-X (3)
  • TN15U (3)
  • W00342 (3)
  • TTX (2)
  • WBK40U (2)
  • WP20TT (2)
  • HK35 (1)
  • KCU25 (1)
  • SPN3W1 (1)
  • TTM (1)
  • TTR-X (1)
  • WBH25U (1)
  • WU20HT (1)
marketingPlatformWIDIA
  • C Style Inserts (522)
  • VariTurn (5)
  • CNMA (2)
Tool Unit
  • I (673)
  • M (673)
Insert Hand
  • N (649)
Minimum Feed
Minimum Feed
Minimum Depth of Cut
Minimum Depth of Cut
No filters matching ""
View Products in
Metric
Inch

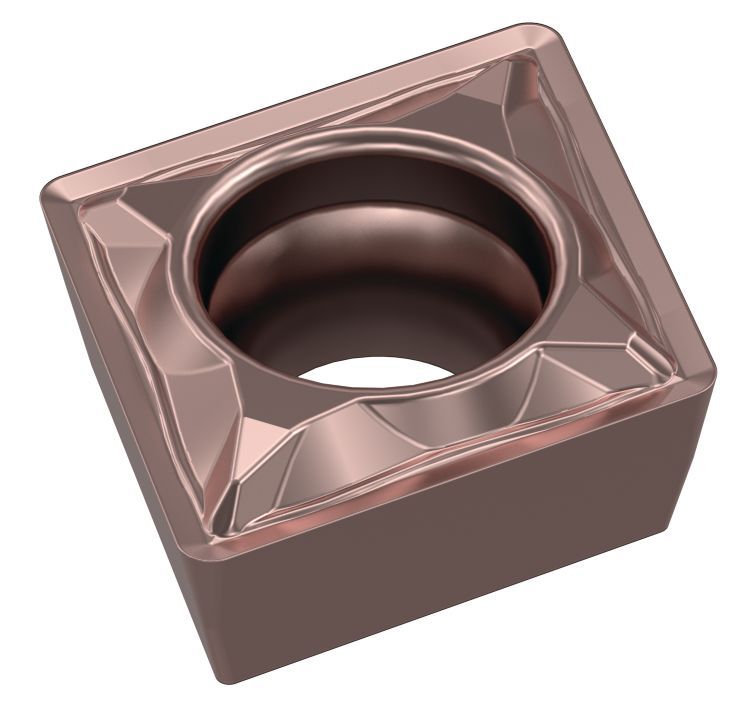

WIDIA™ Victory™ • Vysoce výkonné břitové destičky

ISO/ANSI karbidové břitové destičky
(47 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice Grade [D] Insert IC Size [D] Insert IC Size [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [S] Insert Thickness [S] Insert Thickness [Rε] Corner Radius [Rε] Corner Radius [D1] Insert Hole Size [D1] Insert Hole Size
4168778 CCMT060202FP CCMT21505FP   WM25CT 6.3500 .2500 6.4480 .2539 2.3800 .0938 0.2000 .0080 2.8000 .1100
4169857 CCMT060202FP CCMT21505FP   WP15CT 6.3500 .2500 6.4480 .2539 2.3800 .0938 0.2000 .0080 2.8000 .1100
4170140 CCMT060202FP CCMT21505FP   WP25CT 6.3500 .2500 6.4480 .2539 2.3800 .0938 0.2000 .0080 2.8000 .1100
4168779 CCMT060204FP CCMT2151FP   WM25CT 6.3500 .2500 6.4480 .2539 2.3800 .0938 0.4000 .0156 2.8000 .1100
4169858 CCMT060204FP CCMT2151FP   WP15CT 6.3500 .2500 6.4480 .2539 2.3800 .0938 0.4000 .0156 2.8000 .1100
4170032 CCMT060204FP CCMT2151FP   WK20CT 6.3500 .2500 6.4480 .2539 2.3800 .0938 0.4000 .0156 2.8000 .1100
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice Grade [D] Insert IC Size [D] Insert IC Size [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [S] Insert Thickness [S] Insert Thickness [Rε] Corner Radius [Rε] Corner Radius [D1] Insert Hole Size [D1] Insert Hole Size
4168906 CCMT060204MP CCMT2151MP   WM25CT 6.3500 .2500 6.4480 .2539 2.3800 .0938 0.4000 .0156 2.8000 .1100
4170197 CCMT060204MP CCMT2151MP   WP15CT 6.3500 .2500 6.4480 .2539 2.3800 .0938 0.4000 .0156 2.8000 .1100
4170217 CCMT060204MP CCMT2151MP   WP25CT 6.3500 .2500 6.4480 .2539 2.3800 .0938 0.4000 .0156 2.8000 .1100
4170237 CCMT060204MP CCMT2151MP   WK20CT 6.3500 .2500 6.4480 .2539 2.3800 .0938 0.4000 .0156 2.8000 .1100
5684351 CCMT060204MP CCMT2151MP   WS10PT 6.3500 .2500 6.4480 .2539 2.3800 .0938 0.4000 .0156 2.8000 .1100
4168907 CCMT09T304MP CCMT3251MP   WM25CT 9.5250 .3750 9.6720 .3808 3.9700 .1563 0.4000 .0156 4.4000 .1732
Karbidové břitové destičky

CCMT-MU
(49 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice Grade [D] Insert IC Size [D] Insert IC Size [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [S] Insert Thickness [S] Insert Thickness [Rε] Corner Radius [Rε] Corner Radius [D1] Insert Hole Size [D1] Insert Hole Size
5623421 CCMT090304MU CCMT321MU   WM25CT 9.5250 .3750 9.6720 .3808 3.1800 .1252 0.4000 .0157 4.4000 .1732
5623420 CCMT090304MU CCMT321MU   WP25CT 9.5250 .3750 9.6720 .3808 3.1800 .1252 0.4000 .0157 4.4000 .1732
5623424 CCMT090308MU CCMT322MU   WP25CT 9.5250 .3750 9.6720 .3808 3.1800 .1252 0.8000 .0315 4.4000 .1732
5623423 CCMT090308MU CCMT322MU   WM25CT 9.5250 .3750 9.6720 .3808 3.1800 .1252 0.8000 .0315 4.4000 .1732
5623425 CCMT090308MU CCMT322MU   WP15CT 9.5250 .3750 9.6720 .3808 3.1800 .1252 0.8000 .0315 4.4000 .1732
5623426 CCMT09T304MU CCMT3251MU   WS25PT 9.5250 .3750 9.6720 .3808 3.9700 .1563 0.4000 .0156 4.4000 .1732
WIDIA™ Victory™ • Vysoce výkonné břitové destičky

ISO/ANSI karbidové břitové destičky
(49 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice Grade [D] Insert IC Size [D] Insert IC Size [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [S] Insert Thickness [S] Insert Thickness [Rε] Corner Radius [Rε] Corner Radius [D1] Insert Hole Size [D1] Insert Hole Size
4170369 CCMW090304 CCMW321   WK20CT 9.5250 .3750 9.6720 .3808 3.1800 .1250 0.4000 .0156 4.4450 .1750
4170370 CCMW090308 CCMW322   WK20CT 9.5250 .3750 9.6720 .3808 3.1800 .1250 0.8000 .0312 4.4000 .1732
4170371 CCMW09T304 CCMW3251   WK20CT 9.5250 .3750 9.6720 .3808 3.9700 .1563 0.4000 .0156 4.4450 .1750
2005449 CCMW090304T1A31 17170103527   PB250 9.525 .3750 9.672 .3808 3.180 .1250 0.400 .0157 4.400 .1732
2564211 CCMW090304 CCMW090304   THM-X 9.5250 .3750 9.6720 .3808 3.1800 .1250 0.4000 .0157 4.4000 .1732
2011787 CCMW090304F1A31 CCMW090304   PB100 9.525 .3750 9.672 .3808 3.180 .1250 0.400 .0157 4.400 .1732
WIDIA™ Victory™ • Vysoce výkonné břitové destičky

ISO/ANSI karbidové břitové destičky
(9 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice Grade [D] Insert IC Size [D] Insert IC Size [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [S] Insert Thickness [S] Insert Thickness [Rε] Corner Radius [Rε] Corner Radius [D1] Insert Hole Size [D1] Insert Hole Size
5548575 CNGG120402FS CNGG4305FS   WS10PT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.2000 .0080 5.1600 .2031
5548576 CNGG120401FS CNGG430FS   WS10PT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.1000 .0040 5.1600 .2031
5538204 CNGG120404FS CNGG431FS   WS25PT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.4000 .0156 5.1600 .2031
5548577 CNGG120404FS CNGG431FS   WS10PT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.4000 .0156 5.1600 .2031
5548578 CNGG120408FS CNGG432FS   WS10PT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
5549945 CNGG120404FS CNGG431FS   WU10HT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.4000 .0156 5.1600 .2031
WIDIA Value™

Břitové destičky
(15 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice Grade [D] Insert IC Size [D] Insert IC Size [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [S] Insert Thickness [S] Insert Thickness [Rε] Corner Radius [Rε] Corner Radius [D1] Insert Hole Size [D1] Insert Hole Size
5549137 CNGP120401 CNGP430   WS10PT 12.7000 .5000 12.8960 .5077 4.7620 .1875 0.1020 .0040 5.1560 .2030
5549138 CNGP120402 CNGP4305   WS10PT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.2000 .0080 5.1600 .2031
5549139 CNGP120404 CNGP431   WS10PT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.4000 .0156 5.1600 .2031
5549207 CNGP120404 CNGP431   WU10HT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.4000 .0156 5.1600 .2031
5549190 CNGP120408 CNGP432   WS10PT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
5549208 CNGP120408 CNGP432   WU10HT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice Grade [D] Insert IC Size [D] Insert IC Size [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [S] Insert Thickness [S] Insert Thickness [Rε] Corner Radius [Rε] Corner Radius [D1] Insert Hole Size [D1] Insert Hole Size
4171864 CNMA120408 CNMA432   WK20CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
4171596 CNMA120408 CNMA432   WK05CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
4171865 CNMA120412 CNMA433   WK20CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 1.2000 .0468 5.1600 .2031
4171597 CNMA120412 CNMA433   WK05CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 1.2000 .0468 5.1600 .2031
4171866 CNMA120416 CNMA434   WK20CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 1.6000 .0625 5.1600 .2031
4171868 CNMA160612 CNMA543   WK20CT 15.8750 .6250 16.1200 .6346 6.3500 .2500 1.2000 .0468 6.3500 .2500
WIDIA™ Victory™ • Vysoce výkonné břitové destičky

ISO/ANSI karbidové břitové destičky
(11 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice Grade [D] Insert IC Size [D] Insert IC Size [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [S] Insert Thickness [S] Insert Thickness [Rε] Corner Radius [Rε] Corner Radius [D1] Insert Hole Size [D1] Insert Hole Size
4171025 CNMG120404FF CNMG431FF   WP15CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.4000 .0156 5.1600 .2031
4171026 CNMG120408FF CNMG432FF   WP15CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
4171318 CNMG120404FF CNMG431FF   WK20CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.4000 .0156 5.1600 .2031
4172345 CNMG120404FF CNMG431FF   WM25CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.4000 .0156 5.1600 .2031
5684271 CNMG120404FF CNMG431FF   WS10PT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.4000 .0156 5.1600 .2031
4171319 CNMG120408FF CNMG432FF   WK20CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
WIDIA™ Victory™ • Vysoce výkonné břitové destičky

ISO/ANSI karbidové břitové destičky
(14 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice Grade [D] Insert IC Size [D] Insert IC Size [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [S] Insert Thickness [S] Insert Thickness [Rε] Corner Radius [Rε] Corner Radius [D1] Insert Hole Size [D1] Insert Hole Size
4170458 CNMG120404ML CNMG431ML   WP25CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.4000 .0156 5.1600 .2031
4171059 CNMG120404ML CNMG431ML   WP15CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.4000 .0156 5.1600 .2031
4171390 CNMG120404ML CNMG431ML   WK20CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.4000 .0156 5.1600 .2031
4170459 CNMG120408ML CNMG432ML   WP25CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
4171060 CNMG120408ML CNMG432ML   WP15CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
4171391 CNMG120408ML CNMG432ML   WK20CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
WIDIA™ Victory™ • Vysoce výkonné břitové destičky

ISO/ANSI karbidové břitové destičky
(41 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice Grade [D] Insert IC Size [D] Insert IC Size [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [S] Insert Thickness [S] Insert Thickness [Rε] Corner Radius [Rε] Corner Radius [D1] Insert Hole Size [D1] Insert Hole Size
4170546 CNMG120404MR CNMG431MR   WP25CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.4000 .0156 5.1600 .2031
4170043 CNMG120404MR CNMG431MR   WP35CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.4000 .0156 5.1600 .2031
4170547 CNMG120408MR CNMG432MR   WP25CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
4170044 CNMG120408MR CNMG432MR   WP35CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
4171131 CNMG120408MR CNMG432MR   WP15CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
4172955 CNMG120408MR CNMG432MR   WM25CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
WIDIA™ Victory™ • Vysoce výkonné břitové destičky

ISO karbidové břitové destičky
(27 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice Grade [D] Insert IC Size [D] Insert IC Size [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [S] Insert Thickness [S] Insert Thickness [Rε] Corner Radius [Rε] Corner Radius [D1] Insert Hole Size [D1] Insert Hole Size
5908743 CNMG120404MS CNMG431MS   WS25PT 12.7000 .5000 12.8960 .5077 4.7620 .1875 0.3970 .0156 5.1600 .2030
5908742 CNMG120404MS CNMG431MS   WS10PT 12.7000 .5000 12.8960 .5077 4.7620 .1875 0.3970 .0156 5.1600 .2030
5908745 CNMG120408MS CNMG432MS   WS10PT 12.7000 .5000 12.8960 .5077 4.7620 .1875 0.7940 .0312 5.1600 .2030
5908746 CNMG120408MS CNMG432MS   WS25PT 12.7000 .5000 12.8960 .5077 4.7620 .1875 0.7940 .0312 5.1600 .2030
5908747 CNMG120408MS CNMG432MS   WU10HT 12.7000 .5000 12.8960 .5077 4.7620 .1875 0.7940 .0312 5.1600 .2030
5908749 CNMG120412MS CNMG433MS   WS25PT 12.7000 .5000 12.8960 .5077 4.7600 .1875 1.2000 .0468 5.1600 .2031
WIDIA™ Victory™ • Vysoce výkonné břitové destičky

ISO/ANSI karbidové břitové destičky
(9 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice Grade [D] Insert IC Size [D] Insert IC Size [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [S] Insert Thickness [S] Insert Thickness [Rε] Corner Radius [Rε] Corner Radius [D1] Insert Hole Size [D1] Insert Hole Size
4169353 CNMG120404UF CNMG431UF   WM15CT 12.7000 .5000 12.8960 .5077 4.7620 .1875 0.3970 .0156 5.1560 .2030
5645600 CNMG120404UF CNMG431UF   WS10PT 12.7000 .5000 12.8960 .5077 4.7620 .1875 0.3970 .0156 5.1560 .2030
4169354 CNMG120408UF CNMG432UF   WM15CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
5645588 CNMG120408UF CNMG432UF   WS10PT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
4169379 CNMG120404UF CNMG431UF   WM25CT 12.7000 .5000 12.8960 .5077 4.7620 .1875 0.3970 .0156 5.1560 .2030
5645589 CNMG120404UF CNMG431UF   WP15CT 12.700 .5000 12.896 .5077 4.760 .1875 0.400 .0156 5.160 .2031
WIDIA™ Victory™ • Vysoce výkonné břitové destičky

ISO/ANSI karbidové břitové destičky
(13 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice Grade [D] Insert IC Size [D] Insert IC Size [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [S] Insert Thickness [S] Insert Thickness [Rε] Corner Radius [Rε] Corner Radius [D1] Insert Hole Size [D1] Insert Hole Size
4172380 CNMG120404UM CNMG431UM   WM25CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.4000 .0156 5.1600 .2031
4172335 CNMG120408UM CNMG432UM   WM15CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
4172381 CNMG120408UM CNMG432UM   WM25CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
4172411 CNMG120408UM CNMG432UM   WM35CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
5645219 CNMG120408UM CNMG432UM   WP25CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
4172382 CNMG120412UM CNMG433UM   WM25CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 1.2000 .0468 5.1600 .2031
WIDIA™ Victory™ • Vysoce výkonné břitové destičky

ISO/ANSI karbidové břitové destičky
(78 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice Grade [D] Insert IC Size [D] Insert IC Size [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [S] Insert Thickness [S] Insert Thickness [Rε] Corner Radius [Rε] Corner Radius [D1] Insert Hole Size [D1] Insert Hole Size
4170500 CNMG120404UR CNMG431UR   WP25CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.4000 .0156 5.1600 .2031
4169444 CNMG120404UR CNMG431UR   WM25CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.4000 .0156 5.1600 .2031
4170501 CNMG120408UR CNMG432UR   WP25CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
4169407 CNMG120408UR CNMG432UR   WM15CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
4169445 CNMG120408UR CNMG432UR   WM25CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
4169480 CNMG120408UR CNMG432UR   WM35CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice Grade [D] Insert IC Size [D] Insert IC Size [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [S] Insert Thickness [S] Insert Thickness [Rε] Corner Radius [Rε] Corner Radius [D1] Insert Hole Size [D1] Insert Hole Size
4170979 CNMG120408RH CNMG432RH   WP15CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
4171504 CNMG120408RH CNMG432RH   WP25CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
4171903 CNMG120408RH CNMG432RH   WK20CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
4173035 CNMG120408RH CNMG432RH   WM25CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
5684356 CNMG120408RH CNMG432RH   WP35CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
4170980 CNMG120412RH CNMG433RH   WP15CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 1.2000 .0468 5.1600 .2031
Karbidové břitové destičky

CNMM-65
(25 Products)
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice Grade [D] Insert IC Size [D] Insert IC Size [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [S] Insert Thickness [S] Insert Thickness [Rε] Corner Radius [Rε] Corner Radius [D1] Insert Hole Size [D1] Insert Hole Size
5698348 CNMM12040865 CNMM43265   WP15CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
5698347 CNMM12040865 CNMM43265   WM25CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
5698360 CNMM12040865 CNMM43265   WP35CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
5698349 CNMM12040865 CNMM43265   WP25CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 0.8000 .0312 5.1600 .2031
5698362 CNMM12041265 CNMM43365   WP15CT 12.7000 .5000 12.8960 .5077 4.7600 .1875 1.2000 .0468 5.1600 .2031
5698368 CNMM16061265 CNMM54365   WM25CT 15.8750 .6250 16.1200 .6346 6.3500 .2500 1.2000 .0468 6.3500 .2500
